ADP2300

RECOMMENDED FOR NEW DESIGNS

1.2 A, 20 V, 700 kHz Nonsynchronous Step-down Switching Regulator

Data Sheet (Rev. C)
Part Models
2
1ku List Price
Starting From $0.95
Viewing:

Part Details

  • High efficiency, up to 91%
  • 1.2 A maximum load current
  • ±2% output accuracy over temperature range
  • 700kHz (ADP2300) or 1.4MHz (ADP2301) switching frequency options
  • Wide input voltage range: 3.0 V to 20 V
  • Current-mode control architecture
  • Output voltage from 0.8 V to 0.85×VIN
  • See datasheet for additional features
ADP2300
1.2 A, 20 V, 700 kHz Nonsynchronous Step-down Switching Regulator

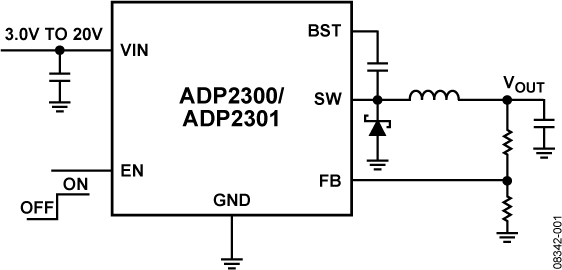

ADP2300/ADP2301 Functional Block Diagram
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

User Guide 1

Application Note 2

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Tools & Simulations

LTspice 1

Models for the following parts are available in LTspice:

  • ADP2300

SIMPLIS Models 1

ADP230x Buck Regulator Design Tool

Microsoft Excel download tool from ADIsimPower to generate a power supply design complete with a schematic, bill of materials, and performance specifications.

Open Tool

ADP230x Inverting Buck-Boost Regulator Design Tool

Microsoft Excel download tool from ADIsimPower to generate a power supply design complete with a schematic, bill of materials, and performance specifications.

Open Tool
LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

EVAL-ADP2300

ADP2300 Evaluation Board

Buy Now View Details

Product Details

The ADP2300/ADP2301 are compact, constant-frequency, current-mode, step-down dc-to-dc regulators with an integrated power MOSFET. The ADP2300/ADP2301 evaluation boards are complete solutions that allow the user to evaluate the performance of the regulators. There are two frequency options available: the ADP2300 runs at 700 kHz, and the ADP2301 runs at 1.4 MHz. These options allow the user to make design decisions based on the trade-off between efficiency and the size of the total solution.


The ADP2300/ADP2301 provide accurate (±2%) output regulation for load currents up to 1.2 A. Current-mode control provides fast and stable line and load transient performance. The precision, EN pin, threshold voltage allows the ADP2300/ADP2301 to be sequenced from other input/output supplies. The EN pin can also be used as a programmable UVLO input by using a resistive divider.
EVAL-ADP2300
ADP2300 Evaluation Board

Reference Designs

Simplified Circuit Diagram
Simplified Circuit Diagram

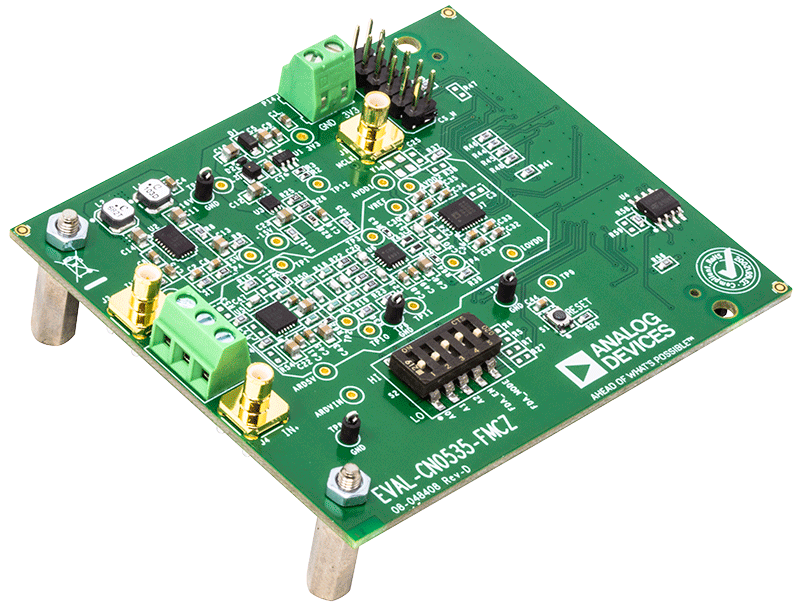

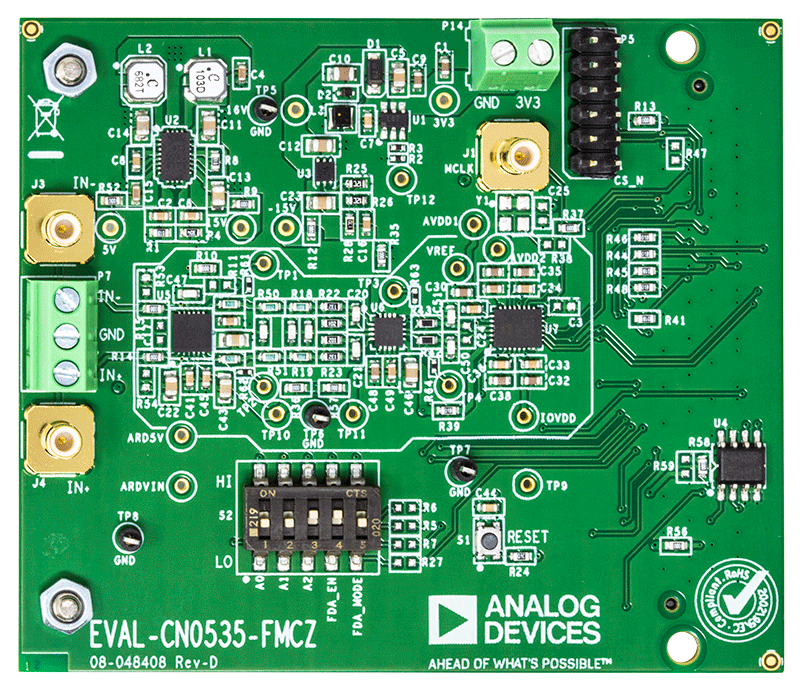

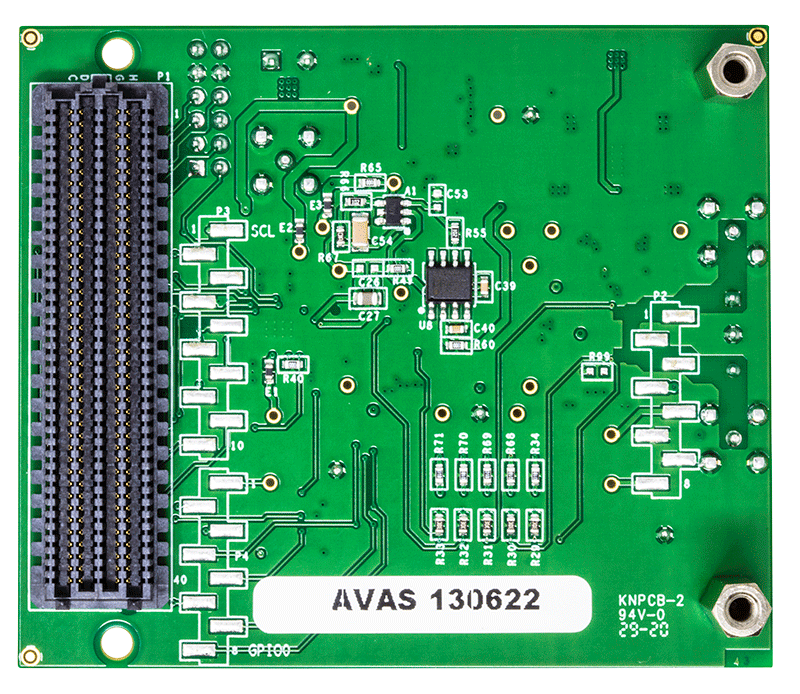

CN0535 Circuits from the lab

High Performance, Alias Free Measurement Platform for Flexible Data Acquisition System

View Detailed Reference Design

Features and Benefits

  • Alias free Measurement System
  • Optimized for AC & DC Performance
  • Wide Analog Input (+/-12V)
  • FMC Compatible Form Factor

Part Used
