ADPA9007

RECOMMENDED FOR NEW DESIGNS

DC to 28 GHz, GaAs, pHEMT, 2 W Power Amplifier

Data Sheet (Rev. 0)
Viewing:

Part Details

  • Wideband, internally-matched, RF power amplifier
  • DC-coupled input and output
  • Integrated RF power detector
  • Integrated temperature sensor
  • Gain: 12.5 dB typical at 2 GHz to 16 GHz
  • OP1dB: 33 dBm typical at 2 GHz to 16 GHz
  • PSAT: 34 dBm typical at 2 GHz to 16 GHz
  • OIP3: 45 dBm typical at 2 GHz to 16 GHz
  • 32-Lead, 5.00 mm × 5.00 mm, LFCSP_CAV package
ADPA9007
DC to 28 GHz, GaAs, pHEMT, 2 W Power Amplifier

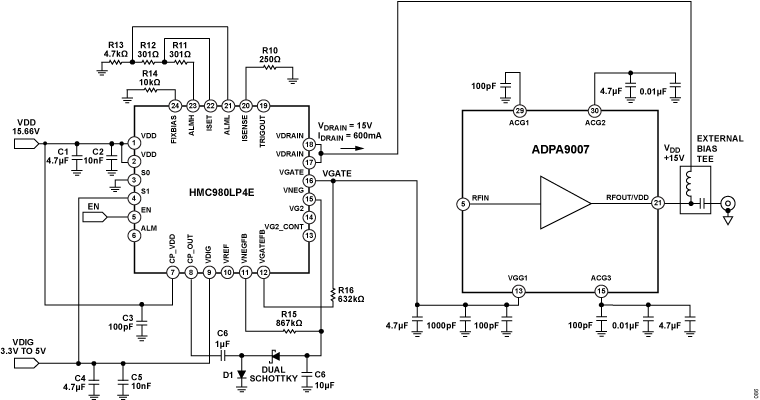

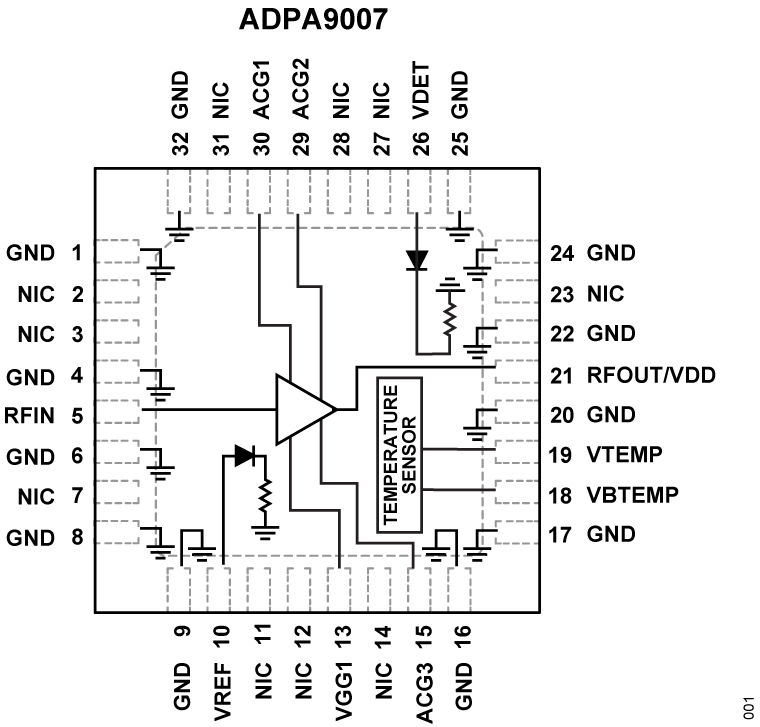

ADPA9007 Functional Block Diagram ADPA9007 Pin Configuration ADPA9007 Application Circuit Diagram ADPA9007 Application Circuit Diagram
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Application Note 2

Evaluation Design File 1

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts Product Life Cycle Description
Charge Pumps 1
ADP5600
RECOMMENDED FOR NEW DESIGNS Interleaved Inverting Charge Pump with Negative LDO Regulator
Linear Regulators 2
LT3041
RECOMMENDED FOR NEW DESIGNS 20 V, 1 A, Ultra-Low Noise, Ultra-High PSRR Linear Regulator with VIOC Control
LT3093
RECOMMENDED FOR NEW DESIGNS –20V, 200mA, Ultralow Noise, Ultrahigh PSRR Negative Linear Regulator
LNAs & Power Amplifiers 1
HMC980LP4E
High-Current, Active Bias Controller
Switching Regulators & Controllers 2
LT8653S
RECOMMENDED FOR NEW DESIGNS Dual Channel 2A, 42V, Synchronous Step-Down Silent Switcher 2 with 6.2μA Quiescent Current
LT8643S/
LT8643SA
42V, 6A Synchronous Step-Down Silent Switcher 2 with 2.5μA Quiescent Current
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

S-Parameter 1

Evaluation Kits

eval board
schematic 1
schematic 2
schematic 3
ADPA9007-EVALZ

ADPA9007 Evaluation Board

Buy Now View Details

Features and Benefits

  • 2-layer Rogers 4350B evaluation board with heat spreader
  • End launch 2.92 mm RF connectors
  • Through calibration path

Product Details

The EVAL-ADPA9007 consists of a 2-layer printed circuit board (PCB) fabricated from 10 mil thick Rogers 4350B copper clad mounted to an aluminum heat spreader. The heat spreader assists in providing thermal relief to the ADPA9007 and mechanical support to the PCB. The mounting holes on the heat spreader allow for attachment to larger heat sinks to improve thermal management.

The RFIN and RFOUT/VDD ports are populated by 2.92 mm female coaxial connectors, and the respective RF traces are of 50 Ω characteristic impedance. The EVAL-ADPA9007 is populated with components suitable for use over the entire operating temperature range of the ADPA9007.

The RF transmission lines are 50 Ω grounded coplanar waveguides. The package ground leads and the exposed pad connect directly to the ground plane. Multiple vias are used to connect the top and bottom ground planes, with particular focus on the area directly beneath the ground paddle, to provide adequate electrical conduction and thermal conduction to the heat spreader.

The power supply decoupling capacitors shown above represent the configuration used in characterizing the device. Full details about the part are available in the ADPA9007 data sheet, which must be consulted when using the EVAL-ADPA9007.
EVAL-ADPA9007
ADPA9007-EVALZ
ADPA9007 Evaluation Board

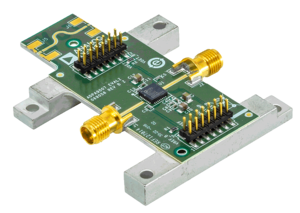

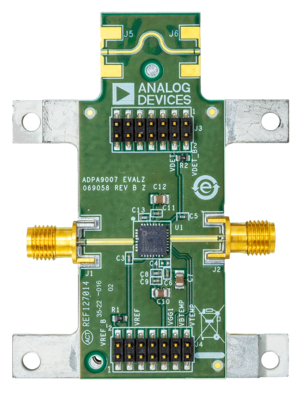

ADPA9007 Evaluation Board - Angle ADPA9007 Evaluation Board - Top ADPA9007 Evaluation Board - Bottom
