HMC8038
RECOMMENDED FOR NEW DESIGNSHigh Isolation, Silicon SPDT, Nonreflective Switch, 0.1 GHz to 6.0 GHz
- Part Models
- 4
- 1ku List Price
- price unavailable
Part Details
- Nonreflective, 50 Ω design
- High isolation: 60 dB typical
- Low insertion loss: 0.8 dB typical
- High power handling
34 dBm through path
29 dBm terminated path - High linearity
0.1 dB compression (P0.1dB): 35 dBm typical
Input third-order intercept (IP3): 60 dBm typical - ESD ratings
4 kV human body model (HBM), Class 3A
1.25 kV charged device model (CDM) - Single positive supply
3.3 V to 5 V
1.8 V-compatible control - see data sheet for additional features

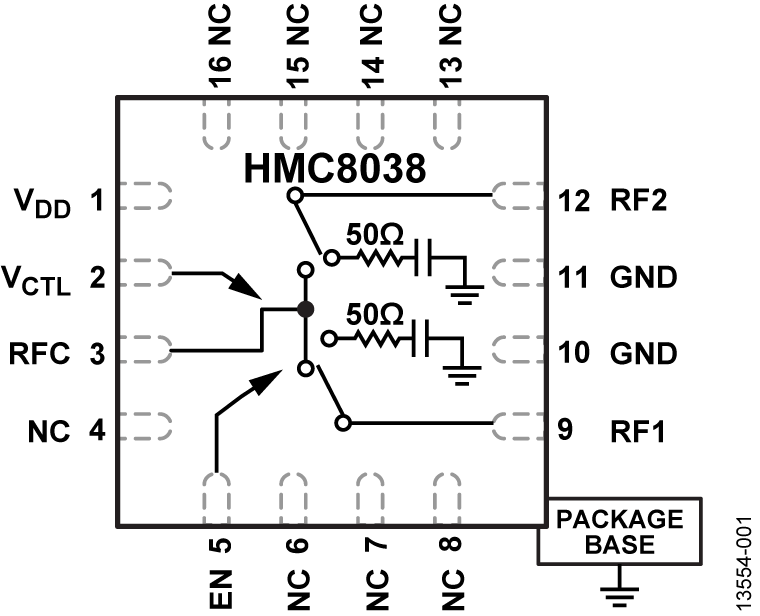

The HMC8038 is a high isolation, nonreflective, 0.1 GHz to 6.0 GHz, silicon, single-pole, double-throw (SPDT) switch in a leadless, surface-mount package. The switch is ideal for cellular infrastructure applications, yielding up to 62 dB of isolation up to 4.0 GHz, a low 0.8 dB of insertion loss up to 4.0 GHz, and 60 dBm of input third-order intercept. Power handling is excellent up to 6.0 GHz, and it offers an input power for an 0.1 dB compression point (P0.1dB) of 35 dBm (VDD = 5 V). On-chip circuitry operates a single, positive supply voltage from 3.3 V to 5 V, as well as a single, positive voltage control from 0 V to 1.8 V/3.3 V/5.0 V at very low dc currents. An enable input (EN) set to logic high places the switch in an all off state, in which RFC is reflective.
The HMC8038 has ESD protection on all device pins, including the RF interface, and can stand 4 kV HMB and 1.25 kV CDM. The HMC8038 offers very fast switching and RF settling times of 150 ns and 170 ns, respectively. The device comes in a RoHS-compliant, compact 4 mm × 4 mm LFCSP package.
Applications
- Cellular/4G infrastructure
- Wireless infrastructure
- Automotive telematics
- Mobile radios
- Test equipment
Documentation
Data Sheet 2
Technical Articles 1
Product Selection Guide 1
Analog Dialogue 1
Webcast 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

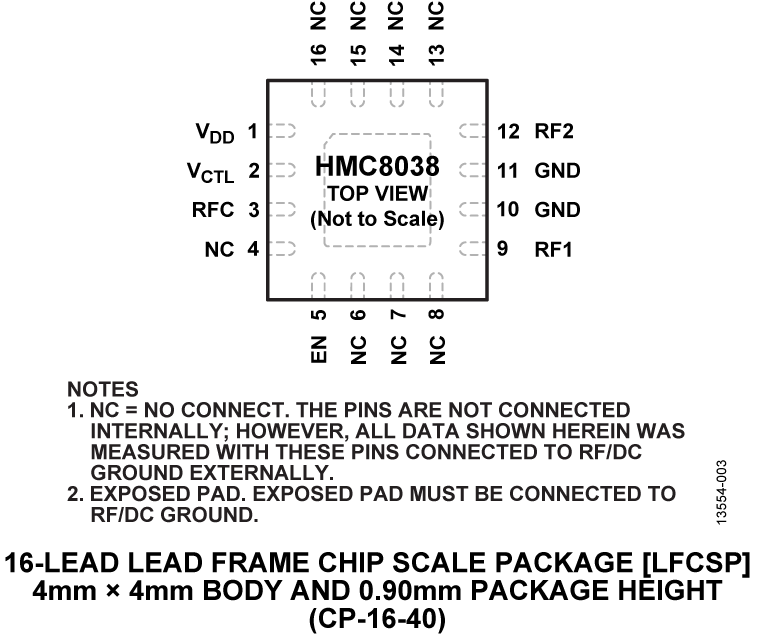

| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| HMC8038LP4CE | 16-Lead LFCSP (4mm x 4mm x 0.9mm w/ EP) | ||
| HMC8038LP4CETR | 16-Lead LFCSP (4mm x 4mm x 0.9mm w/ EP) | ||
| HMC8038WLP4CE | 16-Lead LFCSP (4mm x 4mm x 0.85mm w/ EP) | ||
| HMC8038WLP4CETR | 16-Lead LFCSP (4mm x 4mm x 0.85mm w/ EP) |
