HMC788A

RECOMMENDED FOR NEW DESIGNS

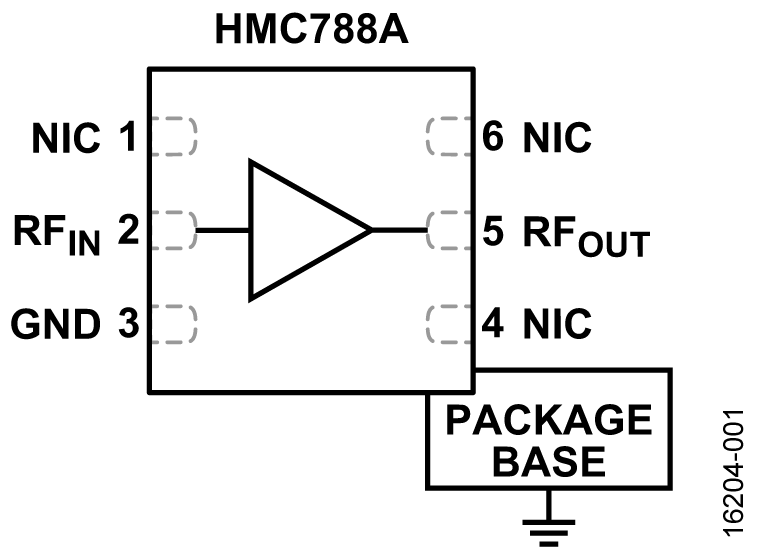

0.01 GHz to 10 GHz, MMIC, GaAs, pHEMT RF Gain Block

Data Sheet (Rev. D)

Part Models: 4
1ku List Price: price unavailable

Viewing:

Part Details

Gain: 14 dB typical
Operational frequency range: 0.01 GHz to 10 GHz
Input/output internally matched to 50 Ω
High input linearity
- 1 dB compression (P1dB): 20 dBm typical
- Output third-order intercept (OIP3): 33 dBm typical
Supply voltage: 5 V typical

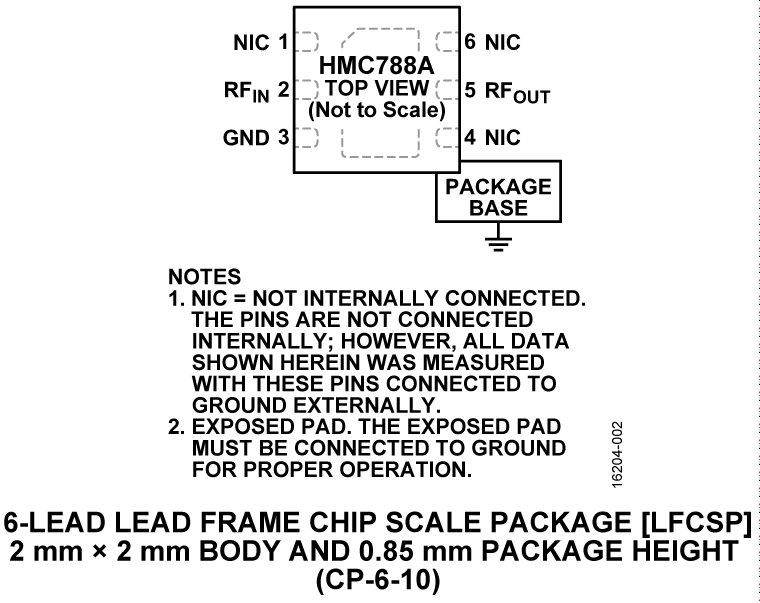

2 mm × 2 mm, 6-lead lead frame chip scale package

HMC788A-EP supports defense and aerospace applications (AQEC standard)

Download the HMC788A-EP data sheet (pdf)
Extended industrial temperature range: −55°C to +105°C
Controlled manufacturing baseline
One assembly/test site
One fabrication site
Enhanced product change notification
Qualification data available on request

Part Models: 4
1ku List Price: price unavailable

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC788ACPSZ-EP-PT	6-Lead LFCSP (2mm x 2mm x 0.85mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC788ACPSZ-EP-R7	6-Lead LFCSP (2mm x 2mm x 0.85mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC788ALP2E	6-Lead LFCSP (2mm x 2mm x 0.85mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC788ALP2ETR	6-Lead LFCSP (2mm x 2mm x 0.85mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 29, 2020 - 20_0148 HMC788A-EP Die Revision
		PCN20_0148_Form Material_Report Qualification Results Summary
HMC788ACPSZ-EP-PT	PRODUCTION
HMC788ACPSZ-EP-R7	PRODUCTION
May 6, 2020 - 20_0147 HMC788A Die Revision, Assembly Site, Marking and Material Change
		PCN20_0147_Form Material_Report Qualification Results Summary Detailed Change Description
HMC788ALP2E	PRODUCTION
HMC788ALP2ETR	PRODUCTION
Apr 23, 2018 - 18_0055 Moisture Sensitivity Level Rating Change for Select Packaged Products
		PCN18_0055_Form Material_Report Qualification Results Summary
HMC788ALP2E	PRODUCTION
HMC788ALP2ETR	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

Sys-Parameter Models for Keysight Genesys

Sys-Parameter models contain behavioral parameters, such as P1dB, IP3, gain, noise figure and return loss, which describe nonlinear and linear characteristics of a device.

Open Tool

S-Parameter 1

HMC788A S-Parameters

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool

Evaluation Kits

EV1HMC788ALP2: HMC788ALP2 Evaluation Board with conical biasing inductor

Buy Now View Details

Features and Benefits

On-board, wideband conical bias inductor based bias tee

End launch, 3.5 mm RF connectors

Through calibration path (depopulated)

Product Details

EV1HMC788ALP2 is one of two evaluation boards for HMC788ALP2E. It includes a wideband bias tee that uses a conical inductor. This circuit is mechanically more fragile than EV2HMC788ALP2 which uses bias tee made from surface mount inductors, capacitors and resistors but has superior electrical performance. EV1HMC788ALP2 is populated with components suitable for use over the entire −40°C to +85°C operating temperature range of the HMC788ALP2E. To calibrate board trace losses, a through calibration path is provided. The through calibration path must be populated with RF connectors before use. For more details on the EV1HMC788ALP2 evaluation board see the HMC788ALP2E data sheet.

Resources

HMC788ALP2E Gerber Files
8/22/2016

HMC788A Gerber Files
10/17/2016

UG-2163: EV2HMC788ALP2, HMC788A Evaluation Board with Surface-Mount Wideband Bias Tee User Guide (Rev.0)
11/10/2023

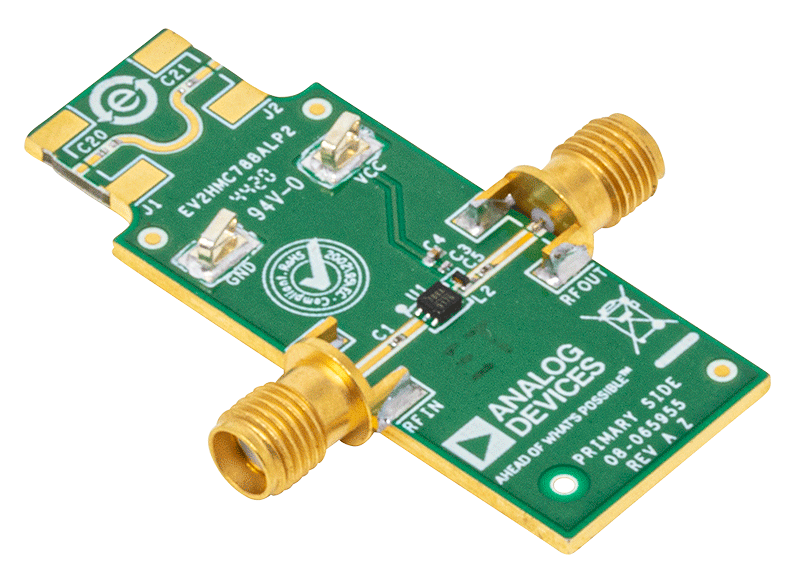

EV2HMC788ALP2: HMC788ALP2 Evaluation Board with surface-mount wideband bias tee

Buy Now View Details

Features and Benefits

4-layer, Rogers 4350B and Isola 370HR evaluation board
Wideband Surface-Mount Bias Tee

End launch, 3.5 mm RF connectors
Through calibration path (depopulated)

Product Details

EV2HMC788ALP2 is one of two evaluation boards for HMC788ALP2E. It includes a wideband bias tee that consists of surface mount inductors, capacitors and resistors. This circuit is mechanically less fragile than EV1HMC788ALP2 which uses a wideband conical bias inductor on the RF output. EV2HMC788ALP2 is populated with components suitable for use over the entire −40°C to +85°C operating temperature range of the HMC788ALP2E. To calibrate board trace losses, a through calibration path is provided between the J1 and J2 connectors. J1 and J2 must be populated with RF connectors to use the through calibration path. For more details on the EV2HMC788ALP2 evaluation board, consult the user guide.
