LT1512

PRODUCTION

SEPIC Constant-Current/Constant-Voltage Battery Charger

Data Sheet
Part Models
10
1ku List Price
Starting From $4.43
Viewing:

Part Details

  • Charger Input Voltage May Be Higher, Equal to or Lower Than Battery Voltage
  • Charges Any Number of Cells Up to 30V*
  • 1% Voltage Accuracy for Rechargeable Lithium Batteries
  • 500kHz Switching Frequency Minimizes Inductor Size
  • 100mV Current Sense Voltage for High Efficiency
  • Battery Can Be Directly Grounded
  • Charging Current Easily Programmable or Shut Down

*Maximum Input Voltage = 40V – VBAT
LT1512
SEPIC Constant-Current/Constant-Voltage Battery Charger

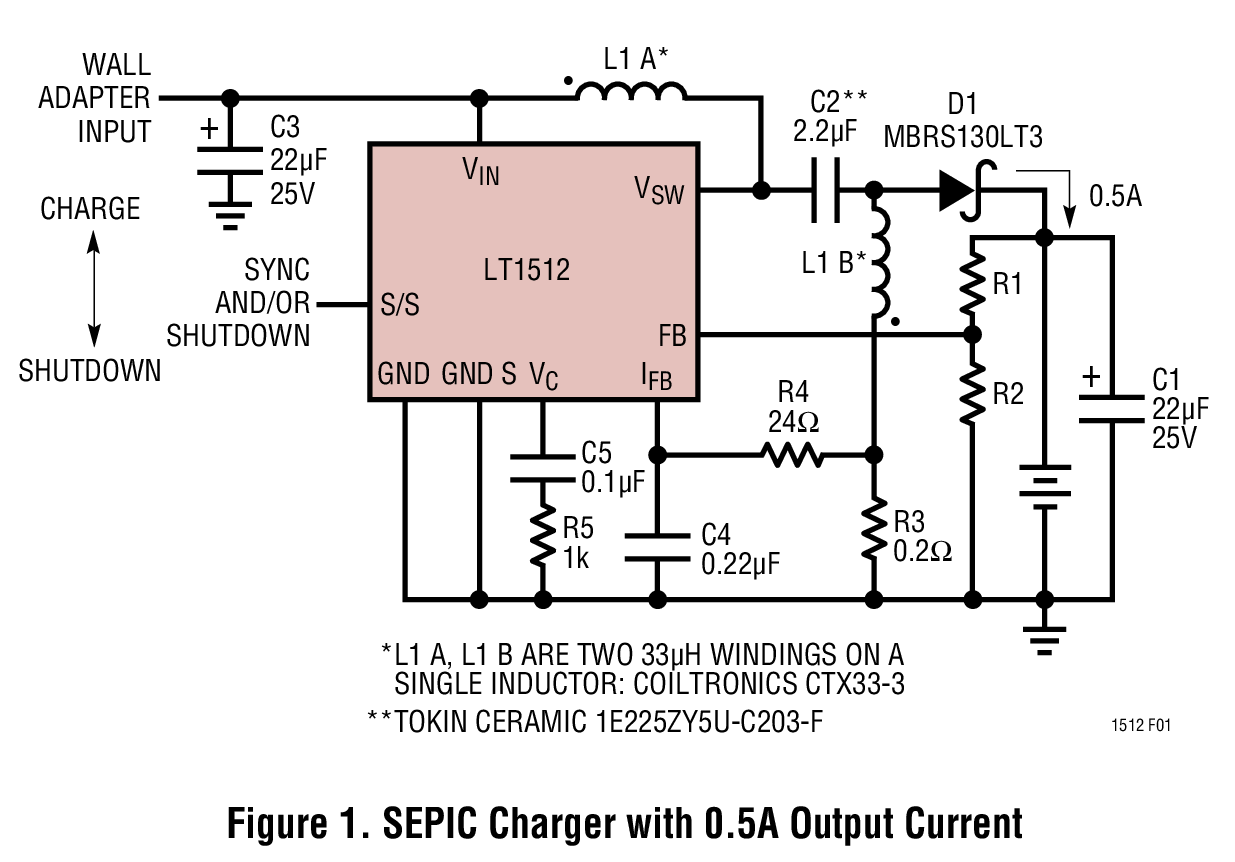

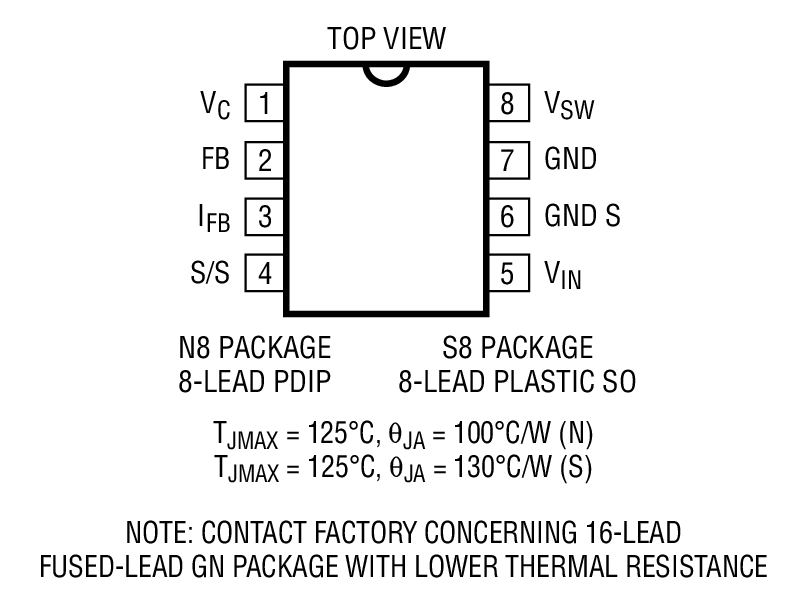

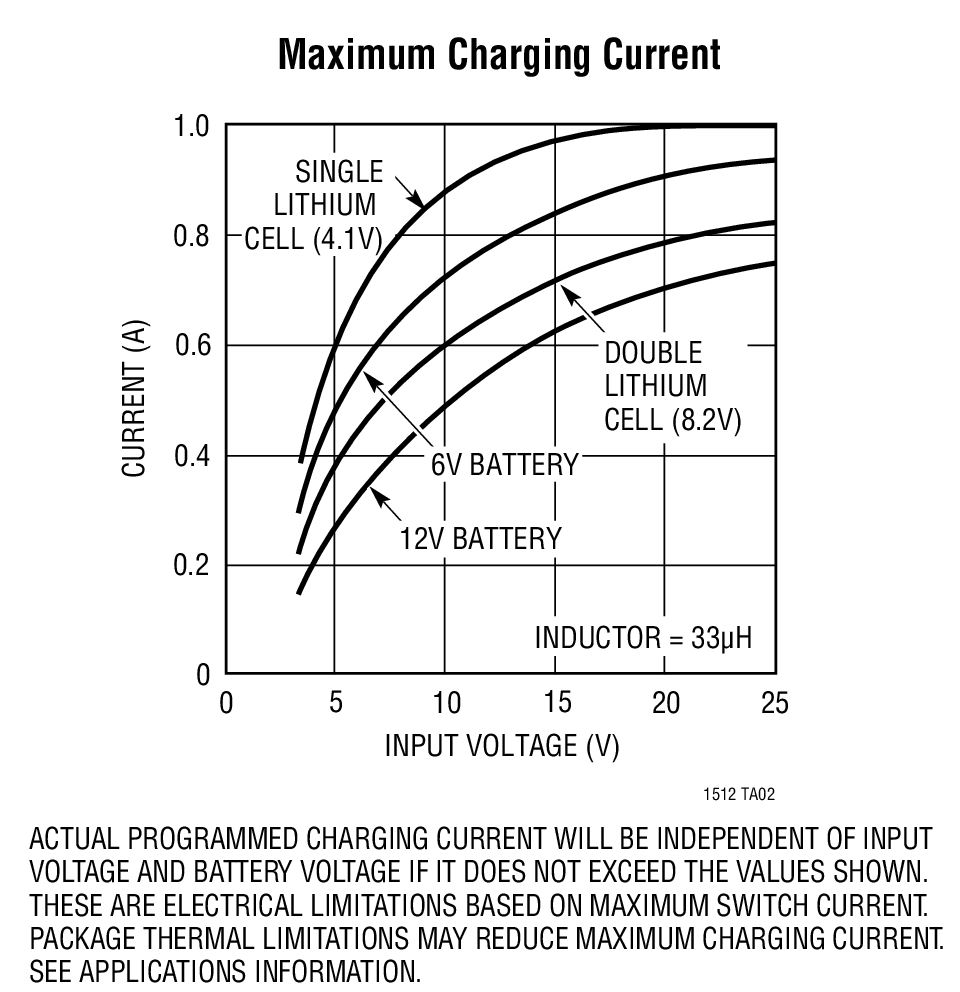

Figure 1. SEPIC Charger with 0.5A Output Current Maximum Charging Current Product Package 1
