LT1970

PRODUCTION

500mA Power Op Amp with Adjustable Precision Current Limit

Data Sheet
Part Models
4
1ku List Price
Starting From $6.57
Viewing:

Part Details

  • ±500mA Minimum Output Current
  • Independent Adjustment of Source and Sink Current Limits
  • 2% Current Limit Accuracy
  • Operates with Single or Split Supplies
  • Shutdown/Enable Control Input
  • Open Collector Status Flags:
    • Sink Current Limit
    • Source Current Limit
    • Thermal Shutdown
  • Fail Safe Current Limit and Thermal Shutdown
  • 1.6V/µs Slew Rate
  • 3.6MHz Gain Bandwidth Product
  • Fast Current Limit Response: 2MHz Bandwidth
  • Specified Temperature Range: –40°C to 85°C
LT1970
500mA Power Op Amp with Adjustable Precision Current Limit

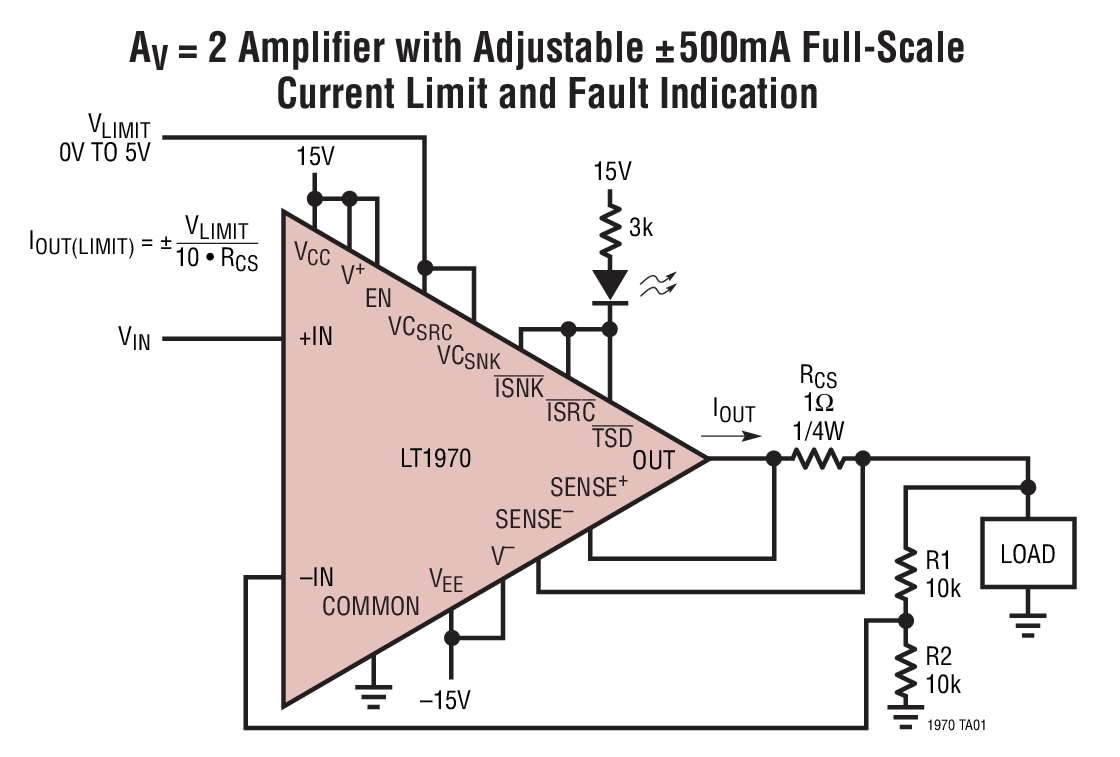

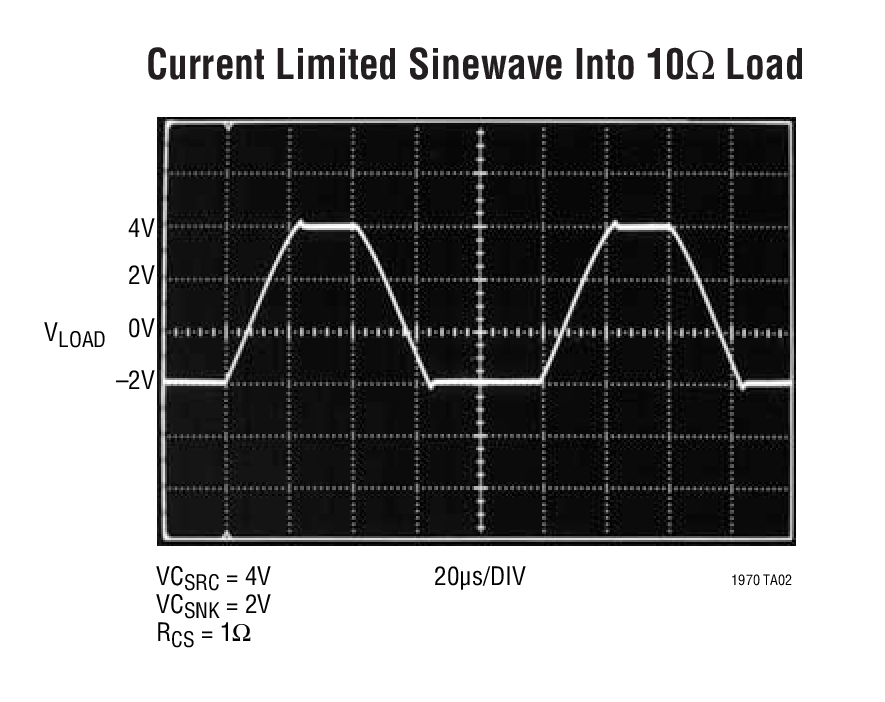

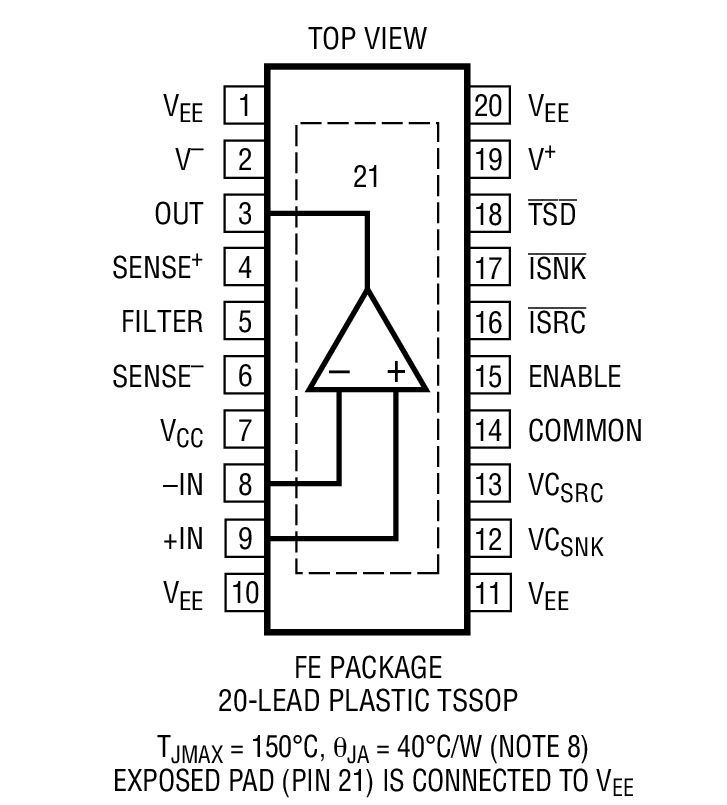

AV = 2 Amplifi er with Adjustable ±500mA Full-Scale Current Limit and Fault Indication Current Limited Sinewave Into 10Ω Load Product Package 1
