LT3008 Series

RECOMMENDED FOR NEW DESIGNS

3μA IQ, 20mA, 45V Low Dropout Linear Regulators

Data Sheet
Part Models
70
1ku List Price
Starting From $1.48
Viewing:

Part Details

  • Ultralow Quiescent Current: 3μA
  • Input Voltage Range: 2.0V to 45V
  • Output Current: 20mA
  • Dropout Voltage: 300mV
  • Adjustable Output (VADJ = VOUT(MIN) = 600mV)
  • Fixed Output Voltages: 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V
  • Output Tolerance: ±2% Over Load, Line and Temperature
  • Stable with Low ESR, Ceramic Output Capacitors (2.2μF Minimum)
  • Shutdown Current: <1μA
  • Current Limit Protection
  • Reverse-Battery Protection
  • Thermal Limit Protection
  • TSOT-23 and 2mm × 2mm DFN Packages
LT3008 Series
3μA IQ, 20mA, 45V Low Dropout Linear Regulators

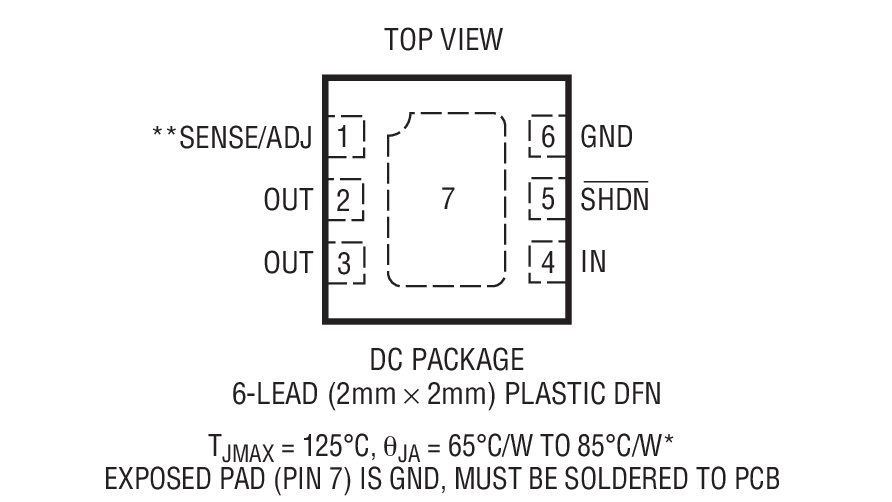

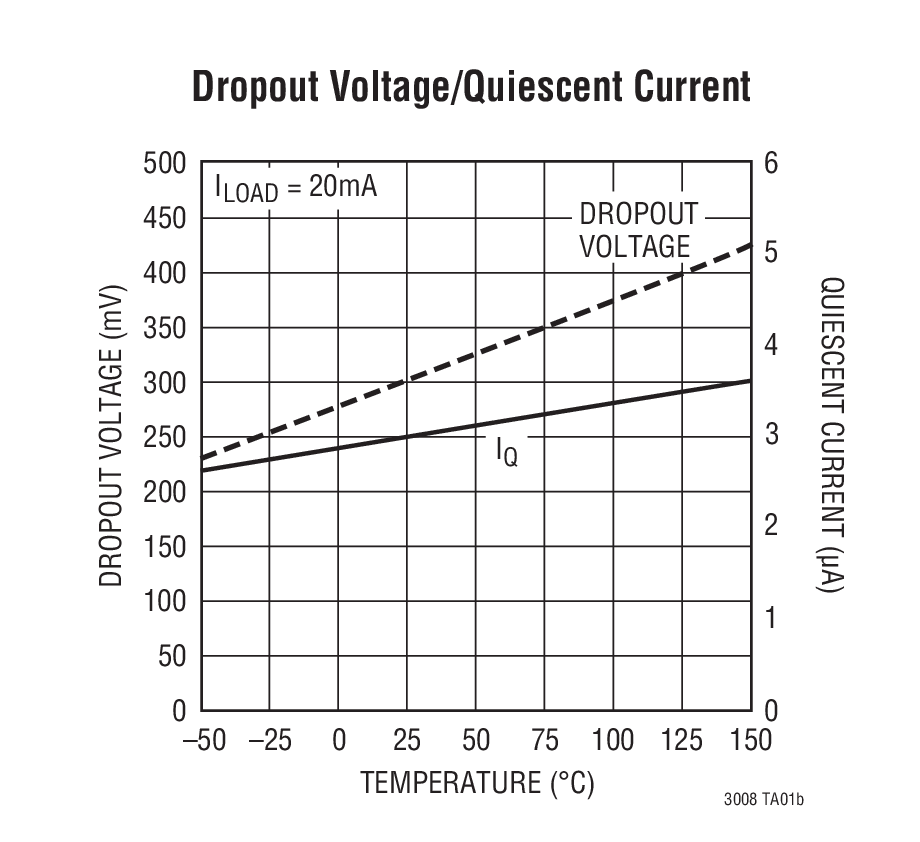

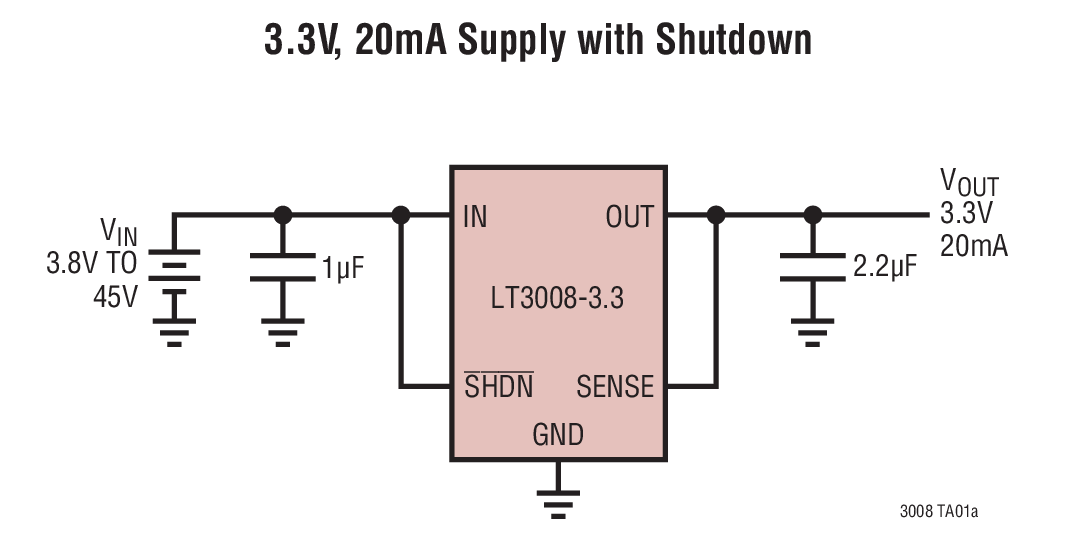

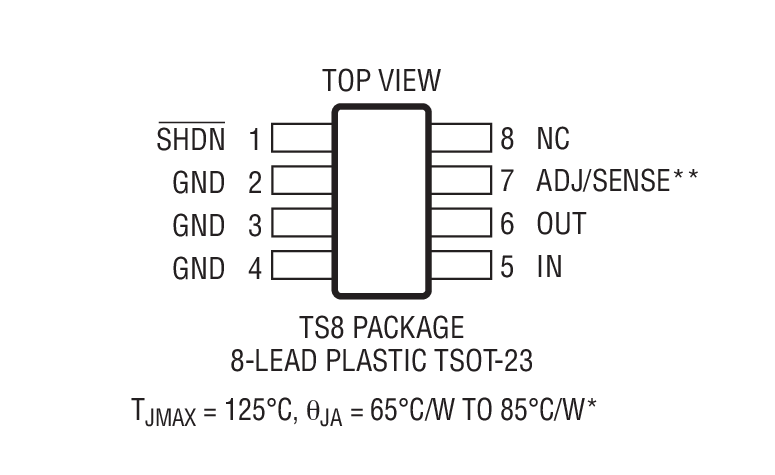

3.3V, 20mA Supply with Shutdown Dropout Voltage/Quiescent Current Product Package 1 Product Package 2
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Reliability Data 1

User Guide 1

Data Sheet

This is the most up-to-date revision of the Data Sheet.

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Hardware Ecosystem

Parts Product Life Cycle Description
Circuit Monitors 1
LTC2960
RECOMMENDED FOR NEW DESIGNS 36V Nano-Current Two-Input Voltage Monitor
Protection Switches & Controllers 3
LTC2955
RECOMMENDED FOR NEW DESIGNS Pushbutton On/Off Controller with Automatic Turn-On
LTC4359
RECOMMENDED FOR NEW DESIGNS Ideal Diode Controller with Reverse Input Protection
LTC4412HV
RECOMMENDED FOR NEW DESIGNS 36V, Low Loss PowerPath™ Controller in ThinSOT
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

LTspice 5

Models for the following parts are available in LTspice:

  • LT3008
  • LT3008-1.2
  • LT3008-1.5
  • LT3008-1.8
  • LT3008-2.5
  • LT3008-3.3
  • LT3008-5
LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

eval board
schematic 1
schematic 2
schematic 3
schematic 4
schematic 5
DC1388A

LT3008EDC Demo Board | 3µA IQ, 20mA Low Dropout Linear Regulators

Buy Now View Details

Product Details

Demonstration circuit 1388A is an ultralow quiescent current and low dropout voltage linear regulator featuring the LT3008 in the 2 × 2 DFN-6 package. The DC1388A has an input voltage range from 2V to 45V, and is capable of delivering up to 20mA output current. The jumper-selectable output voltage can be set to 1.2V, 1.5V, 1.8V, 2V, 2.5V, 3.3V, 5V or a user-defined value. With a 3µA quiescent current, the LT3008 is ideal for supplying power to low current battery-powered systems, keep-alive power supply and remote monitoring utility meters and hotel door locks.
DC1388A
LT3008EDC Demo Board | 3µA IQ, 20mA Low Dropout Linear Regulators

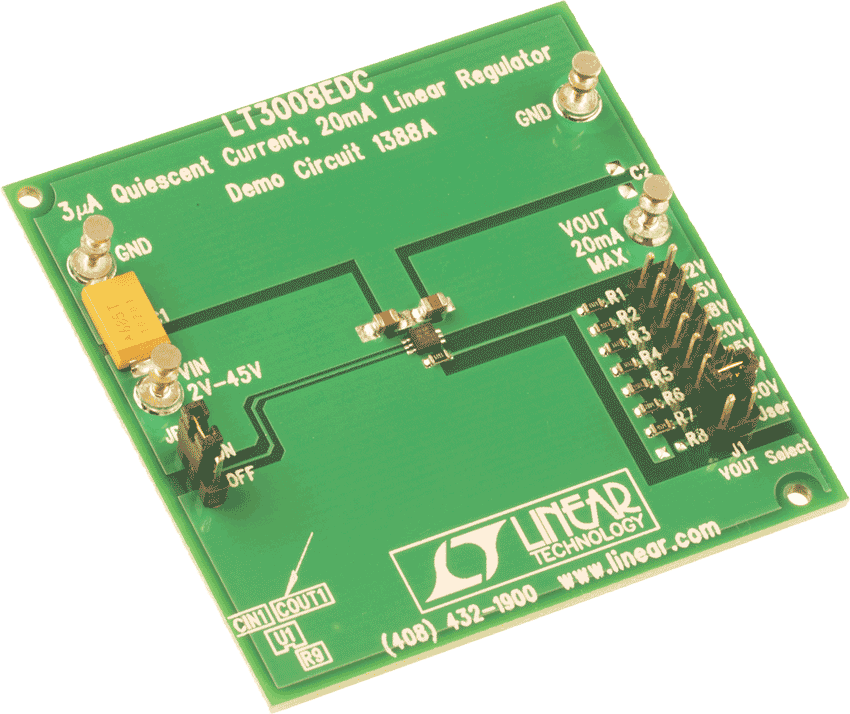

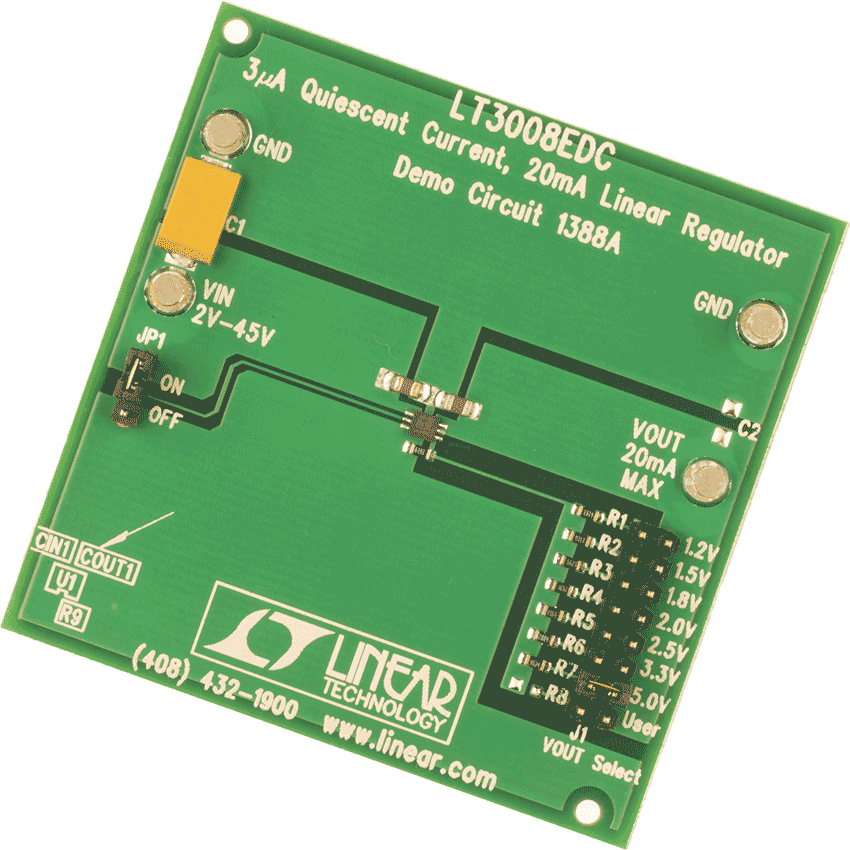

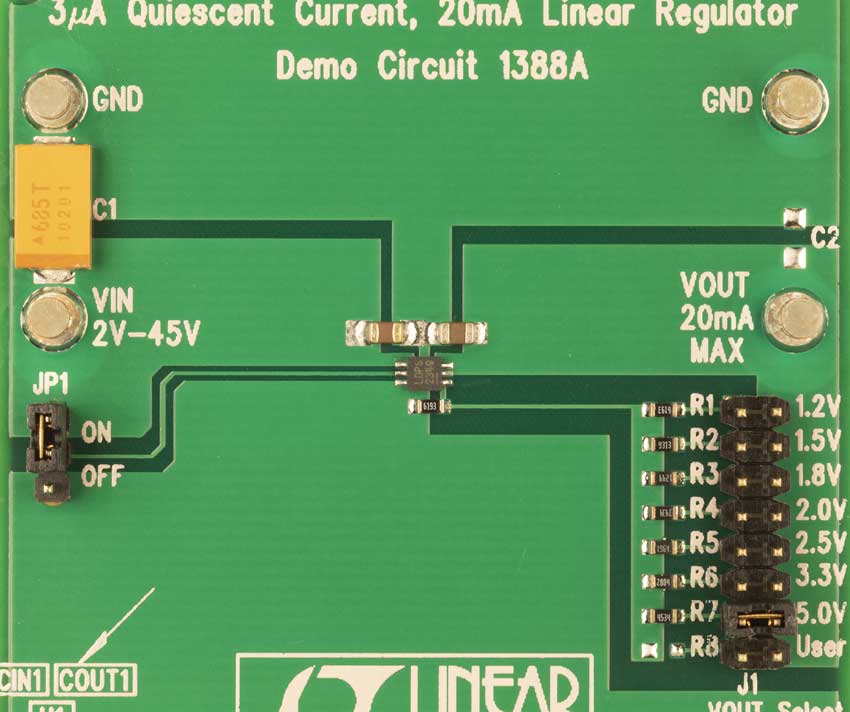

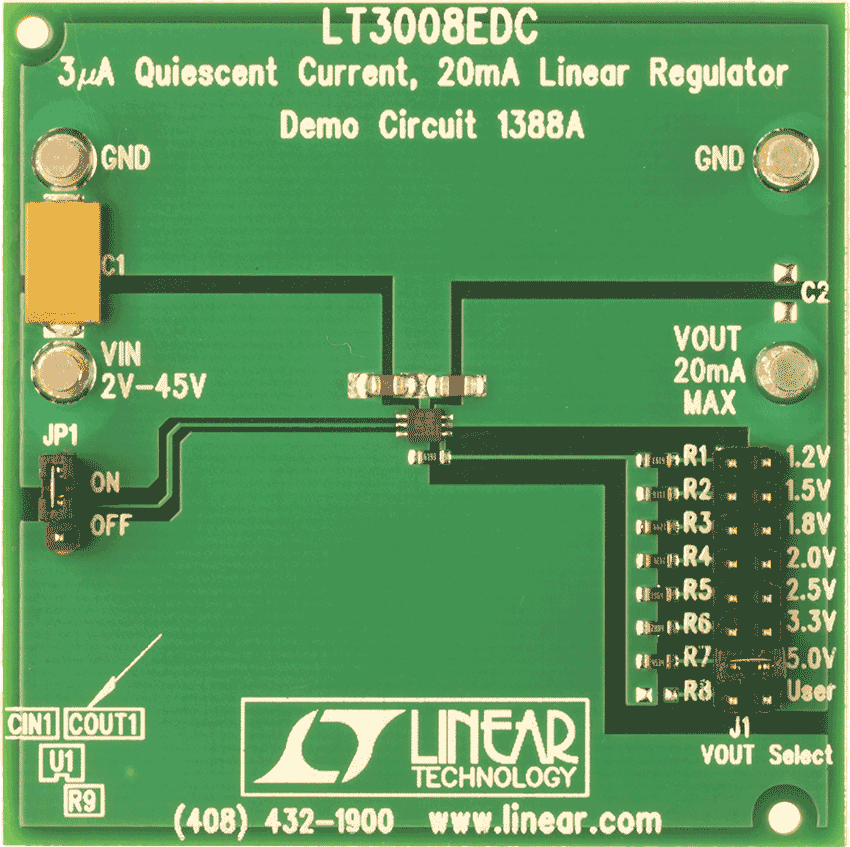

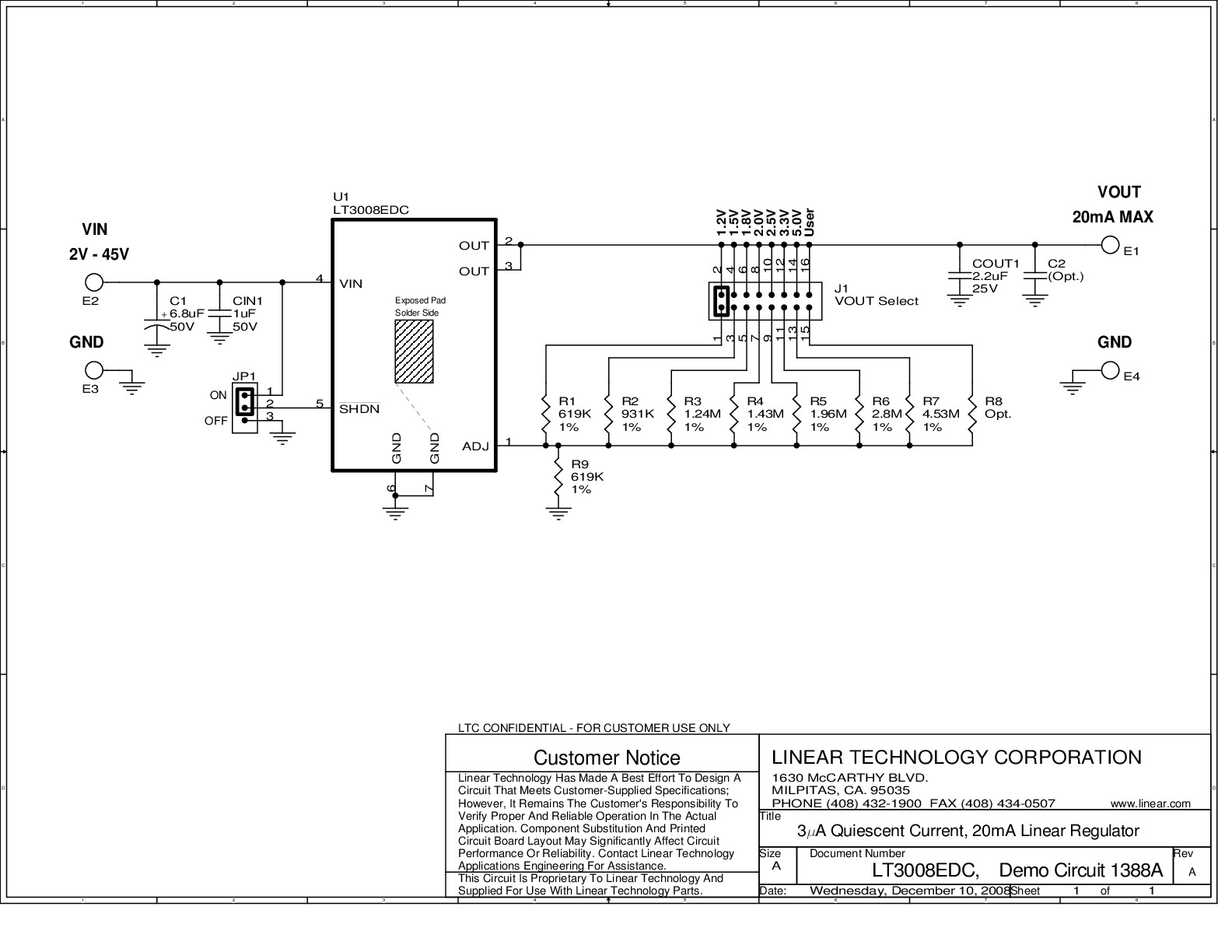

DC1388A Demo Board DC1388A Demo Board DC1388A Demo Board DC1388A Demo Board DC1388A - Schematic
