AD8597

量产

超低失真、超低噪声运算放大器（单通道）

数据手册 (Rev. F)

产品模型: 5

Viewing:

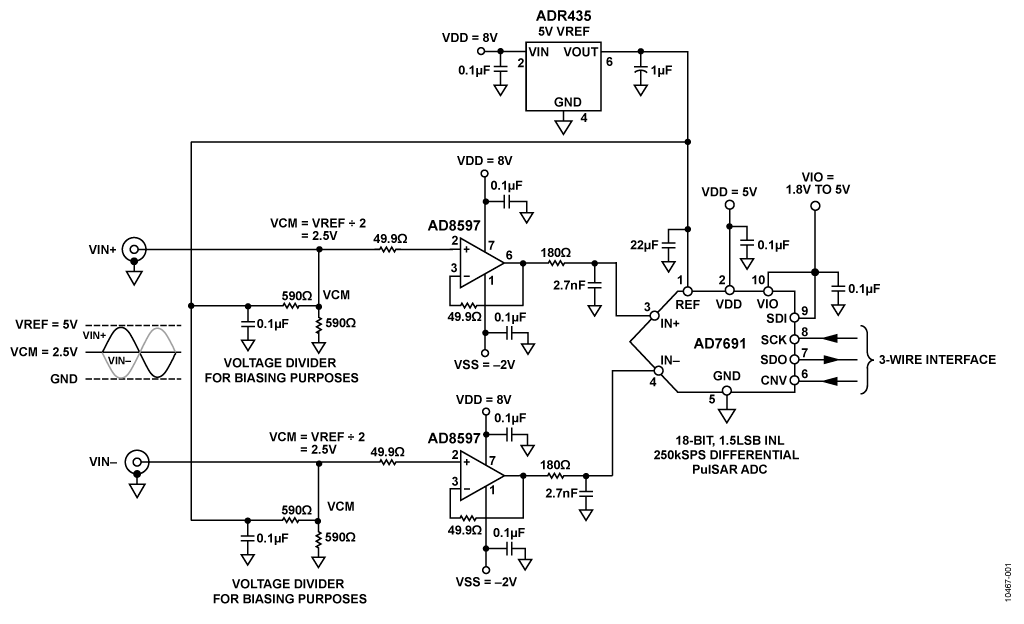

产品详情

低噪声：1.1 nV/√Hz (1 kHz)
低失真：−120 dB THD (1 kHz)
输入噪声（0.1 Hz至10 Hz）：<76 nV p-p
压摆率：14 V/μs
宽带宽：10 MHz
电源电流：每个放大器4.8 mA（典型值）
低失调电压：10 μV（典型值）
共模抑制比(CMRR)：120 dB
单位增益稳定
±15 V电源

参考资料

数据手册 1

AD8597/AD8599: Single and Dual, Ultralow Distortion, Ultralow Noise Op Amps Data Sheet (Rev.F) 08/20/2015

应用笔记 3

AN-358: 噪声与运算放大器电路 (Rev.0) 05/21/2010

最佳噪声性能：低噪声放大器选型指南 07/24/2020

AN-358: 噪声与运算放大器电路 03/01/1969

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型

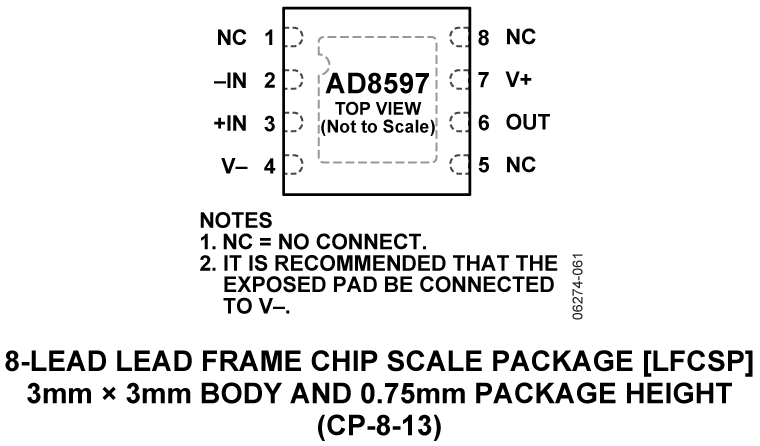

AD8597ACPZ-REEL	8-Lead LFCSP (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8597ACPZ-REEL7	8-Lead LFCSP (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

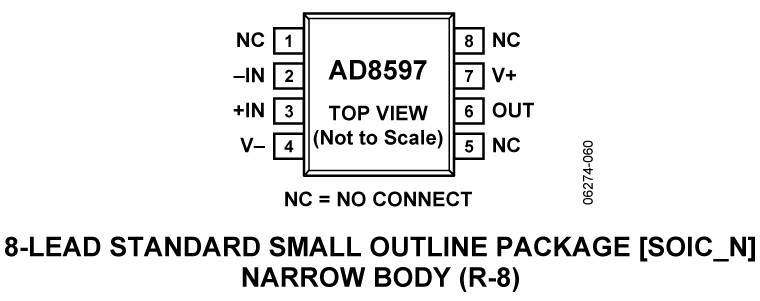

AD8597ARZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8597ARZ-REEL	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8597ARZ-REEL7	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

7月 25, 2017 - 17_0068 CANCELLED: Addition of ASE Korea as an Alternate Assembly Site for Select 3x3mm and 4x4mm Body Sizes LFCSP Devices
		PCN17_0068_Form Material_Report Detailed Change Description Package Outline Drawing Qualification Results Summary
AD8597ACPZ-REEL	量产
AD8597ACPZ-REEL7	量产
2月 13, 2014 - 14_0038 Conversion of 3x3mm body Size LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines.
		PCN14_0038_Form Material_Report Detailed Change Description Package Outline Drawing Qualification Report Summary
AD8597ACPZ-REEL	量产
AD8597ACPZ-REEL7	量产
11月 23, 2010 - 10_0004 Halogen Free Material Change for SOIC Narrow Body Products Assembled at Amkor
		PCN10_0004_Form Material_Report ADI0012 Reliability Report
AD8597ARZ	量产
AD8597ARZ-REEL	量产
AD8597ARZ-REEL7	量产

这是最新版本的数据手册
