ADES1830

推荐新设计使用

16 通道多元电池组监控器

数据手册 (Rev. A) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • 最多可测量 16 个串联电池单元
  • 最大寿命 TME：ADES1830 每个电池单元 3.3 V 时为 ±1.8 mV，对于 ADES1831 为 ±5 mV（–40°C 至 +105°C）
  • 同时连续测量电池电压
  • 可配置的集成低通滤波
  • 用于高压电池组的可堆叠架构
  • 内置式 isoSPI
    • 2Mbps 隔离式串行通信
    • 使用一根双绞线，每段最长 20 米
    • 低 EMI 易感性和辐射
    • 双向断线保护
    • 电容器或变压器耦合
  • 可热插拔，无需外部保护
  • 无源单元平衡，每通道高达 300mA，具有可编程 PWM
  • 多达 9 个通用模拟输入或数字 I/O
    • 温度或其他传感器输入
    • 可配置为 I2C 或 SPI 控制器
  • 休眠方式电源电流为 4 μA
  • 对母线的规定
ADES1830
16 通道多元电池组监控器

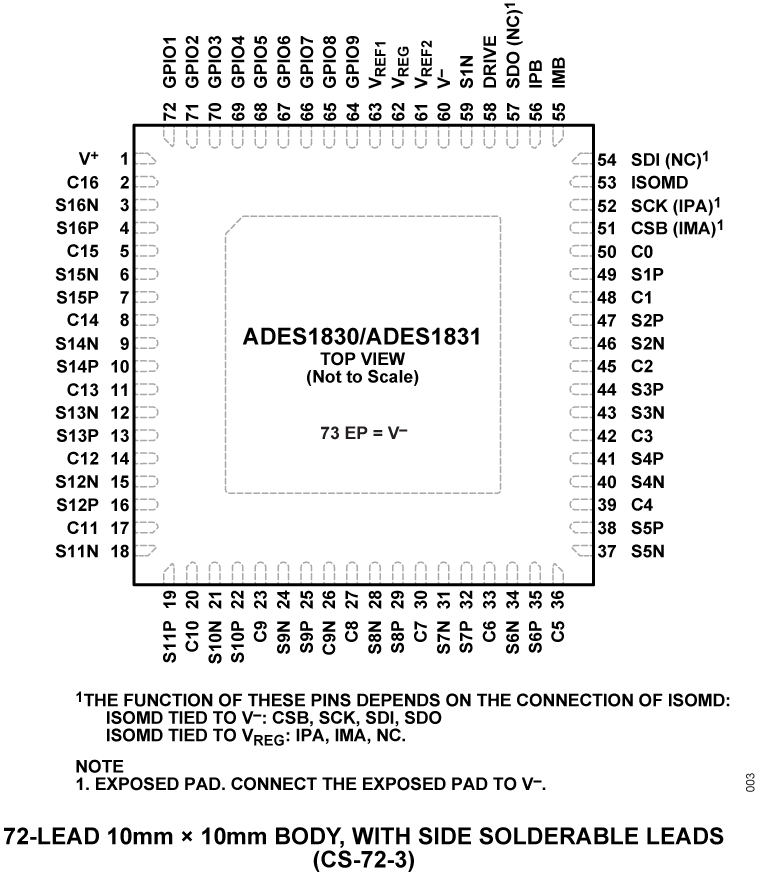

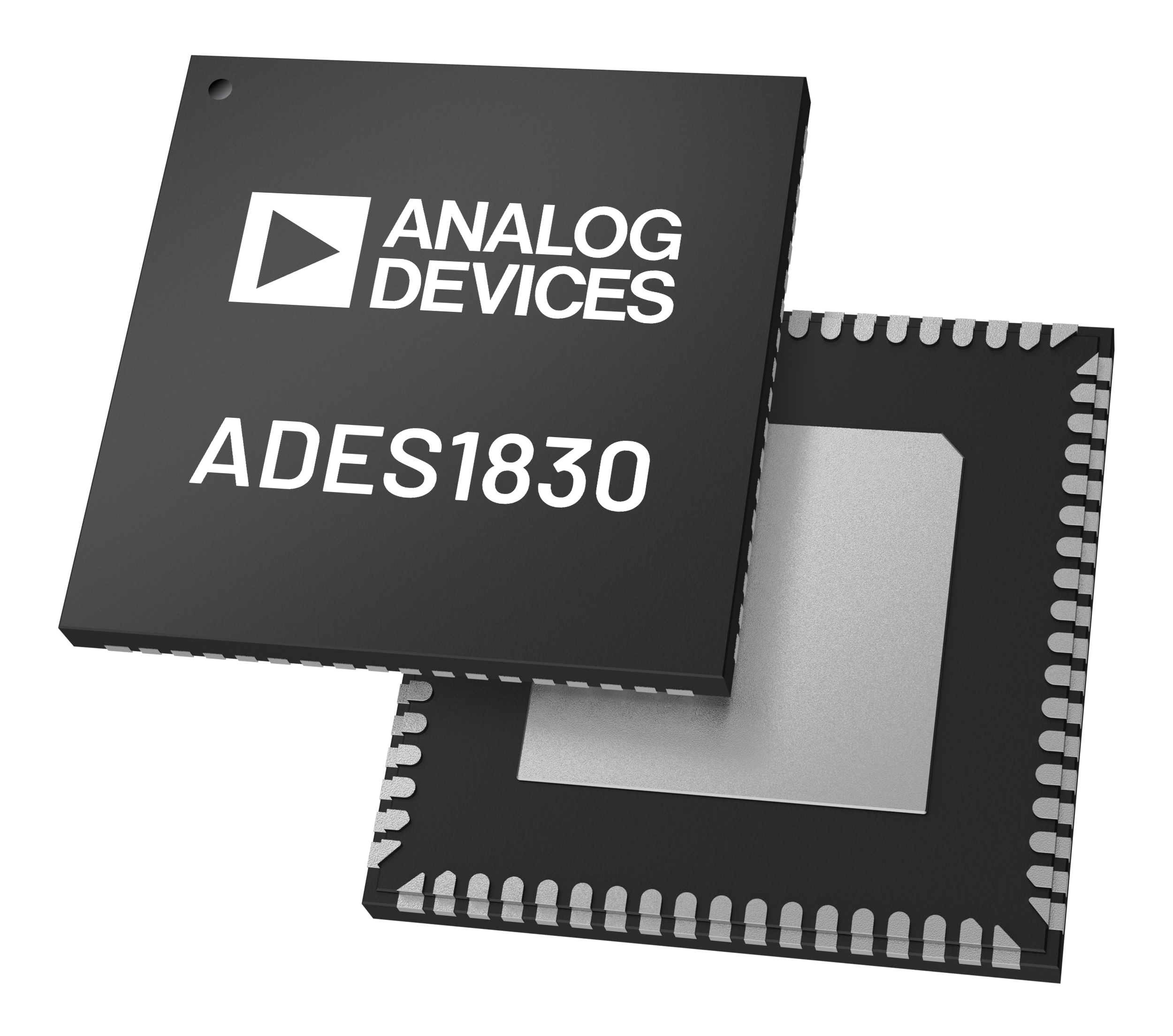

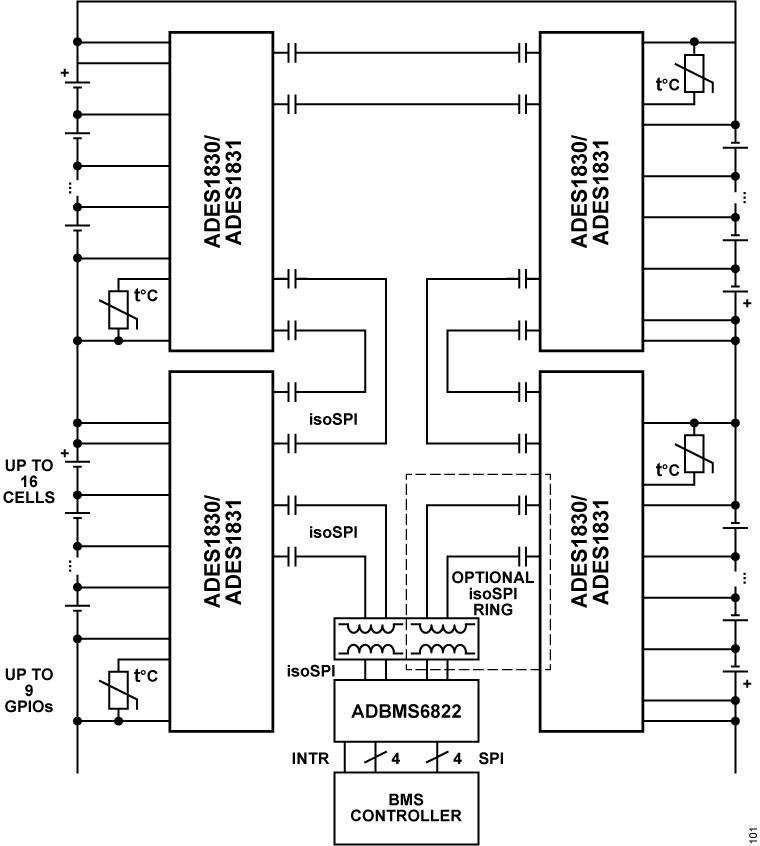

ADES1830 Chip ADES1830/ADES1831 Functional Block Diagram ADES1830/ADES1831 Pin Configuration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

硬件生态系统

部分模型 产品周期 描述
ADES1831
推荐新设计使用 16 通道多元电池组监控器
Modal heading
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

评估套件

eval board
schematic 1
schematic 2
schematic 3
EVAL-ADES1830

Evaluation Board for the ADES1830 16-Channel Multicell Battery Monitor

立即购买 更多内容

特性和优点

  • Full featured demonstration board for the ADES1830
  • Built features
    • Demonstrates the high performance measurements of the ADES1830
    • Two isoSPI® ports for reversible isoSPI® support
    • Daisy-chain capability
    • isoSPI® connections through simple RJ45 to RJ45 connectors or RJ45 to DuraClik® connectors
  • Compatible boards
    • AD-APARD32690 microcontroller

产品详情

The EV-ADES1830CCSZ is a multicell battery stack monitor featuring the ADES1830, a 16-channel battery stack monitor. Multiple boards can be linked through a 2-wire isolated serial interface (isoSPI®) to monitor a long series of cells in a stack. The EVADES1830CCSZ also features reversible isoSPI enabling a ring communication path. The printed circuit board (PCB), components, and connectors are optimized for low electromagnetic interference (EMI) susceptibility and emissions.

The EV-ADES1830CCSZ can communicate with a PC by connecting to the AD-APARD32690 microcontroller via the SPI pins.

Design files for this circuit board are available.

eval board
schematic 4
schematic 5
schematic 6
schematic 7
schematic 8
schematic 9
schematic 10
schematic 11
EVAL-ESS1-SYS

Scalable BMS Kit for Cell and Pack Monitoring

立即购买 更多内容

特性和优点

  • Accurate voltage and current measurement
  • Highly scalable and ease of integration
  • Robust isoSPI capability implementable in daisy chain high count
  • Inclusive passive balancing with individual pulse-width modulation
  • Isolated power supply between microcontroller and battery monitoring devices
  • High voltage and current supply measurement
  • Fast overcurrent (OC) measurement
  • Redundancy measurement
  • Modular BMS Solution

产品详情

The EVAL-ESS1-SYS Solution Kit contains all the necessary building blocks to create a complete BMS solution stack.

The accompanying PC-based graphical user interface provides an intuitive interface that allows the user to configure the BMS signal chain components and view cell and stack voltage and current measurement results.

The package includes one application processor (AD-APARD32690-SL), one dual isoSPI adapter (EVAL-ADBMS6822), two 16-cell battery monitors (EV-ADES1830CCSZ), two 16-cell battery emulators (DC2472A), and one battery pack monitor (EVAL-ADBMS2950-BASIC).

Upon purchase, the EVAL-ESS1-SYS kit comes with the following boards and accessories:

Boards

  • 2x EV-ADES1830CCSZ 16-Channel Battery Cell Monitor
  • 2x DC2472A Battery Cell Emulator with harness fitted
  • 1x EVAL-ADBMS2950-BASIC Battery Pack Monitor
  • 1x EVAL-ADBMS6822 Dual isoSPI Adapter
  • 1x AD-APARD32690-SL ARM Cortex M4 Controller Board
  • 1x AD-USB2.0T1L-EBZ
  • 1x MAX32625PICO Programming Adapter with 10-pin SWD cable

Cables and Other Accessories

  • 1x RJ45-to-RJ45
  • 2x DuraClik-to-RJ45 Twisted Pair Cables
  • 3x DuraClik isoSPI Twisted Pair Cables
  • 3x USB Type A to Micro-B Cable
  • 1x USB A to C-Type Cable
  • 1x T1L STP Cable

APPLICATIONS

  • IoT Battery Management
  • Industrial Machine Vision
  • Power Tools
  • Mobile Robotics Battery Management
  • Industrial Equipment Battery Monitoring
  • Adaptive Battery Type System Monitoring
  • Portable Energy Storage Systems

EVAL-ADES1830
Evaluation Board for the ADES1830 16-Channel Multicell Battery Monitor

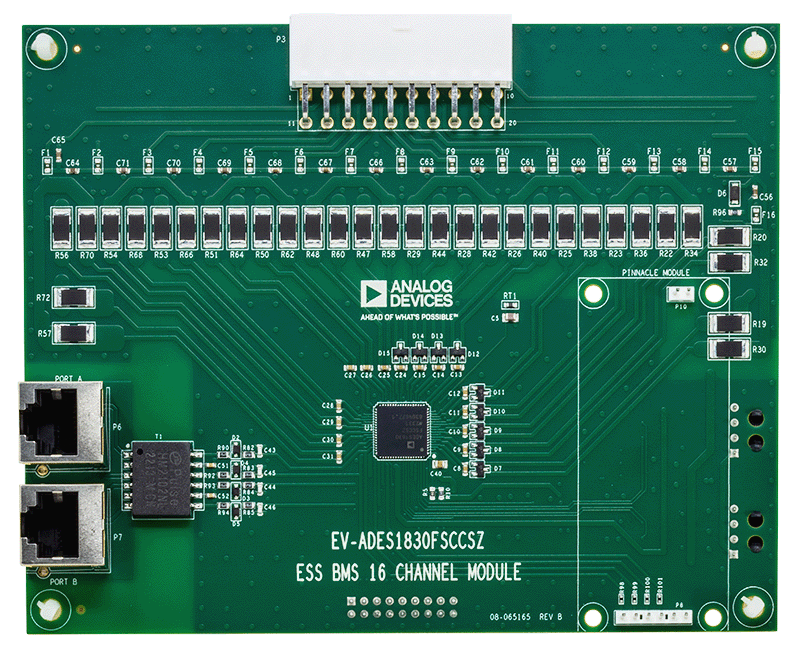

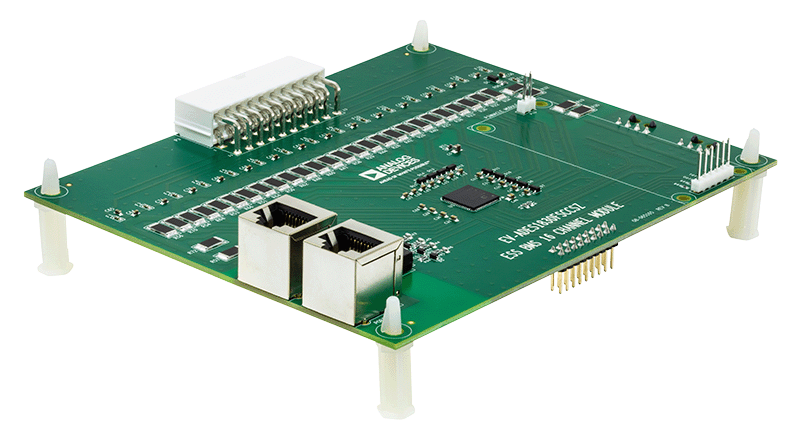

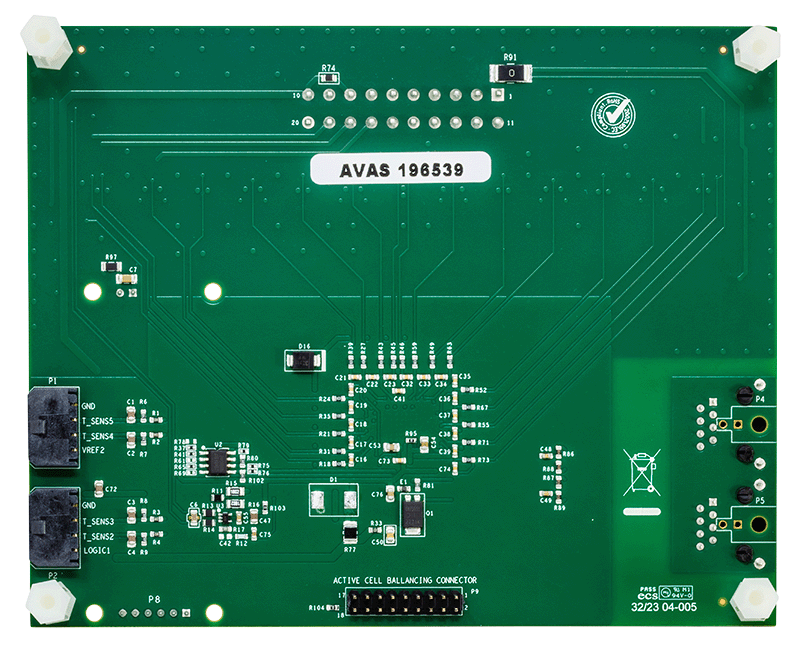

EVAL-ADES1830 Board Photo Angle View EVAL-ADES1830 Board Photo Top View EVAL-ADES1830 Board Photo Bottom View
EVAL-ESS1-SYS
Scalable BMS Kit for Cell and Pack Monitoring
EVAL-ESS1-SYS Kit Photo Angle View EVAL-ESS1-SYS-KIT Board Photo Top View EV-ADES1830 Board Photo Angle View EVAL-ADBMS2950 BASIC Board Photo Angle View EVAL-ADBMS6822 Board Photo Angle View EVAL-MAX32690-ARDZ Board Photo Angle View DC2472A Board Photo Angle View EVAL-ESS1-SYS Block Diagram
