HMC8038

推荐新设计使用

高隔离度、硅SPDT、非反射开关，0.1 GHz至6.0 GHz

数据手册 (Rev. A)

产品模型: 4

Viewing:

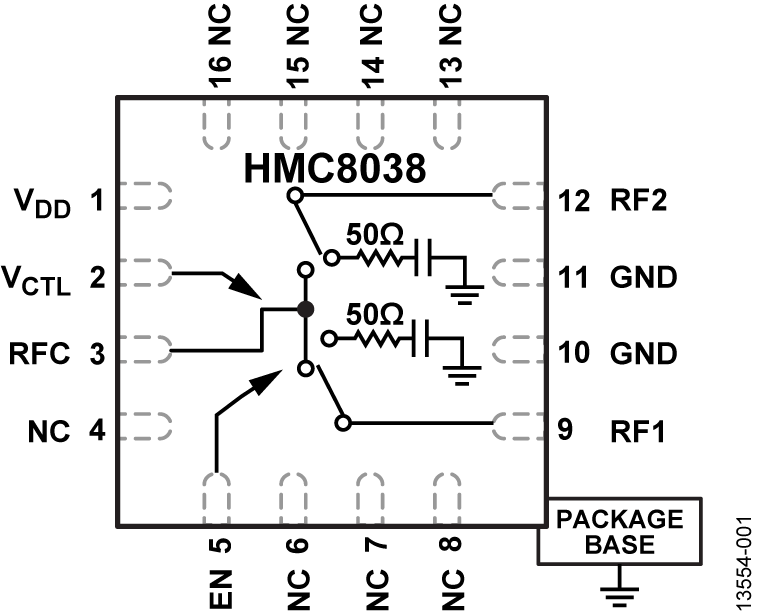

产品详情

非反射式50 Ω设计
高隔离度： 60 dB（典型值）
低插入损耗： 0.8 dB（典型值）
高功率处理
34 dBm（通过路径）
29 dBm（端接路径）
高线性度
0.1 dB压缩(P0.1dB)： 35 dBm（典型值）
输入三阶交调截点(IP3)： 60 dBm（典型值）

ESD额定值
4 kV人体模型(HBM)，3A类
1.25 kV充电器模型(CDM)
单正电源
3.3 V至5 V
1.8 V兼容控制
欲了解更多特性，请参考数据手册

参考资料

数据手册 2

HMC8038W: High Isolation, Silicon SPDT, Nonreflective Switch, 0.1 GHz to 6.0 GHz Data Sheet (Rev.0) 08/15/2017

HMC8038: High Isolation, Silicon SPDT, Nonreflective Switch, 0.1 GHz to 6.0 GHz Data Sheet (Rev.A) 09/23/2015

技术文章 1

RF and MW Control Products in Silicon 03/01/2016

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

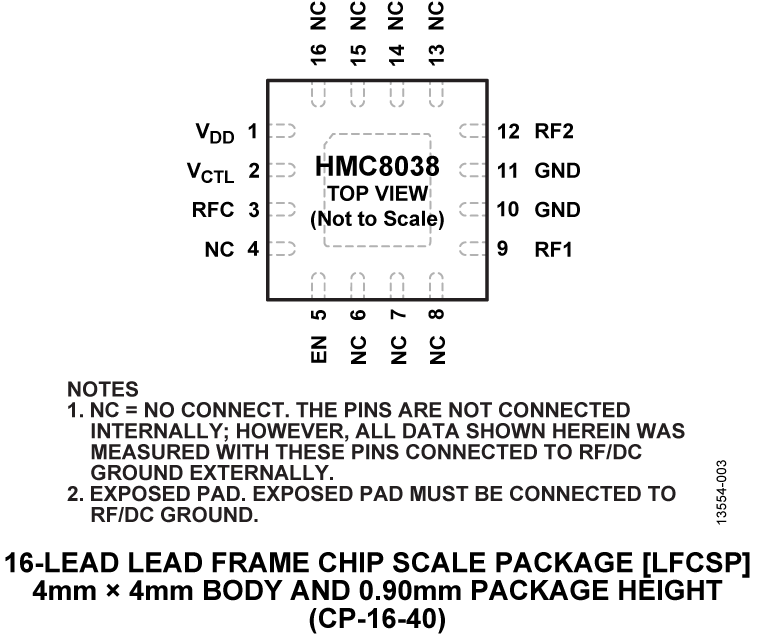

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
HMC8038LP4CE	16-Lead LFCSP (4mm x 4mm x 0.9mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC8038LP4CETR	16-Lead LFCSP (4mm x 4mm x 0.9mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC8038WLP4CE	16-Lead LFCSP (4mm x 4mm x 0.85mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC8038WLP4CETR	16-Lead LFCSP (4mm x 4mm x 0.85mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

这是最新版本的数据手册

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

工具及仿真模型

S-参数 1

HMC8038 S-Parameters

ADIsimRF

ADIsimRF是一款简单易用的RF信号链计算工具。可以计算和导出多达50级的信号链级联增益、噪声、失真和功耗并绘制其曲线。ADIsimRF还包括丰富的ADI射频和混合信号元件的器件模型数据库。

打开工具

评估套件

HMC8038评估板

立即购买更多内容

产品详情

本页提供评估HMC8038的评估板订购信息。

资料

HMC8038LP4C Gerber Files
2016/2/22

Software-Defined Radio

立即购买更多内容

特性和优点

RF/SDR
- ADRV9002 transceiver
- 2 x receiver, 2 x transmitter
- LO frequency range 30 MHz to 6 GHz
- 12 kHz to 40 MHz frequency bandwidth
- Sampling rate 12 kSPS to 61.44 MSPS
External Device Clock Input
External MCS Input
RF Front-end
Processing System
- Zynq UltraScale+ MPSoC XCZU3EG
- DDR4 – 2 GB (x32)
- Boot source
  - SD card 3.0
  - Flash memory 128 MB

User Interfaces
- USB 3.1 Gen 1 – Type C
Ethernet 1000BASE-T RGMII
Display Port v1.2 (2 lanes, 5.4 Gbps)
SATA 3
USB (micro) debug interface
16 GPIOs (3V3 LVCMOS)

Power Sources
- USB Type-C (power only)
- USB Type-C (data)
  - Power Sink 5V/3A
  - Power Source 5V/0.9 A
- 802.3at POE compliant, 25.5 W Type2 (POE+)

产品详情

The AD-JUPITER-EBZ is a versatile software-defined platform based on Analog Devices ADRV9002 and Xilinx Zynq UltraScale+ MPSoC. The ADRV9002 is a new generation RF transceiver that has dual-channel transmitters, dual-channel receivers covering a frequency range of 30 MHz to 6 GHz. This device has a high-quality RF linearity performance and a set of advanced features like fast profiles switching, flexible power vs. performance configuration, fast frequency hopping, multi-chip synchronization, and digital pre-distortion (DPD) for narrow and wide band waveform.

The evaluation platform includes XCZU3EG processing device that has a wide range of interfaces, making the system capable of local processing or streaming to a remote host. It comes integrated in a self-contained ruggedized aluminum case, which gives flexibility in evaluating and prototyping across different environments.
