MAX14783E

量产

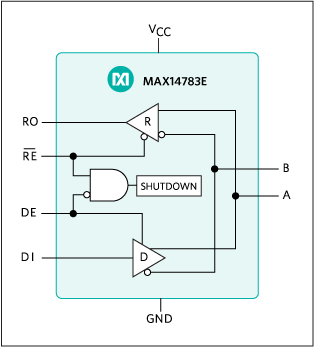

高速3.3V/5V RS-485/RS-422收发器，具有±35kV HBM ESD保护

业内速度最高、具有最高ESD保护的双压RS-485/RS-422收发器

Viewing:

产品详情

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
MAX14783EASA+	Small-Outline IC, Narrow (0.15in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EASA+T	Small-Outline IC, Narrow (0.15in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EATA+	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EATA+T	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EAUA+	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EAUA+T	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EESA+	Small-Outline IC, Narrow (0.15in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EESA+T	Small-Outline IC, Narrow (0.15in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EEUA+	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EEUA+T	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EGUA+	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EGUA+T	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data	Ultra Librarian SamacSys

这是最新版本的数据手册

Pocket IO PLC Development Platform

Two analog input channels ±12V, differential, 0V to +12V range per pin, 24-bit ADC
Two analog input channels ±24mA, 24-bit ADC
Analog output channel 0V to ±12V, 16-bit DAC
Eight digital input channels 36V (max) configurable for IEC^® 61131-2 input types 1, 2, and 3
Eight digital output channels; 640mA high-side switches or 640mA push-pull at 24V
Two RS-485 COM ports; half-duplex up to 42Mbps data rate
Three DC-motor controllers: 9V to 32V full-bridge DC-motor drivers, up to 2.5A peak motor current (supplied by separate power supply)
Four IO-Link master ports with M12 female connectors
Fully IO-Link version 1.1 compliant
TEConcept IO-Link master stack
