LTC3609

PRODUCTION

32V, 6A Monolithic Synchronous Step-Down DC/DC Converter

Data Sheet

Part Models: 4
1ku List Price: Starting From $8.40

Viewing:

Part Details

6A Output Current
Wide V_IN Range = 4V to 32V (36V Maximum)
Internal N-Channel MOSFETs
True Current Mode Control
Optimized for High Step-Down Ratios
t_ON(MIN) ≤ 100ns
Extremely Fast Transient Response
Stable with Ceramic C_OUT
±1% 0.6V Voltage Reference
Power Good Output Voltage Monitor
Adjustable On-Time/Switching Frequency
Adjustable Current Limit
Programmable Soft-Start
Output Overvoltage Protection
Optional Short-Circuit Shutdown Timer
Low Shutdown I_Q: 15μA

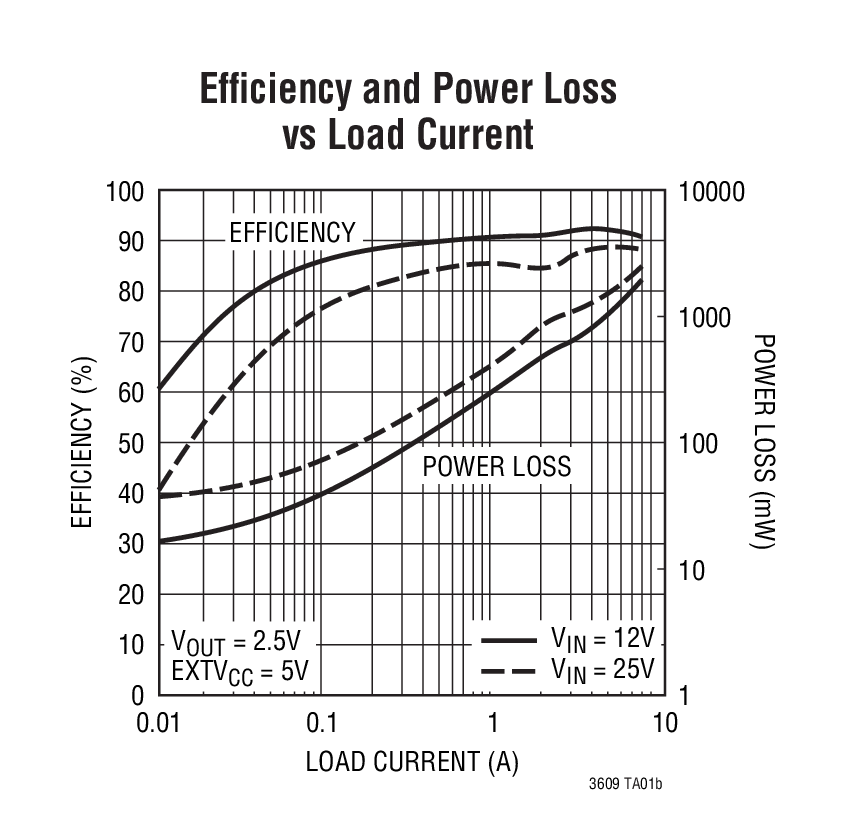

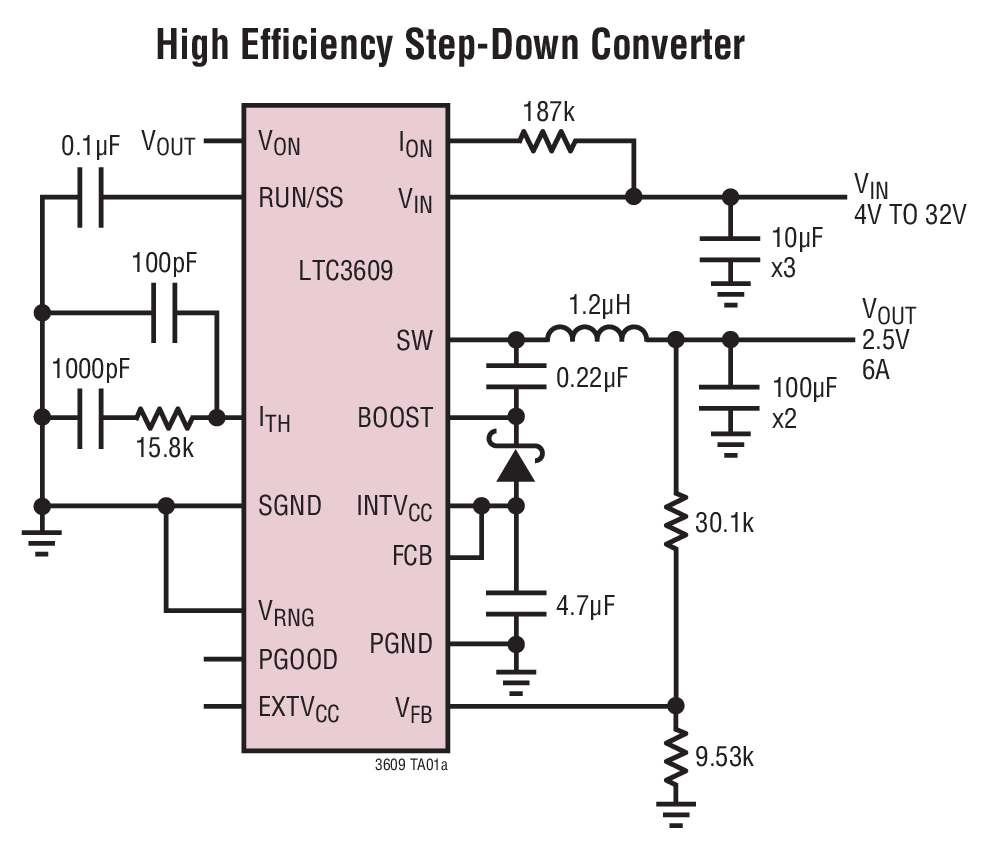

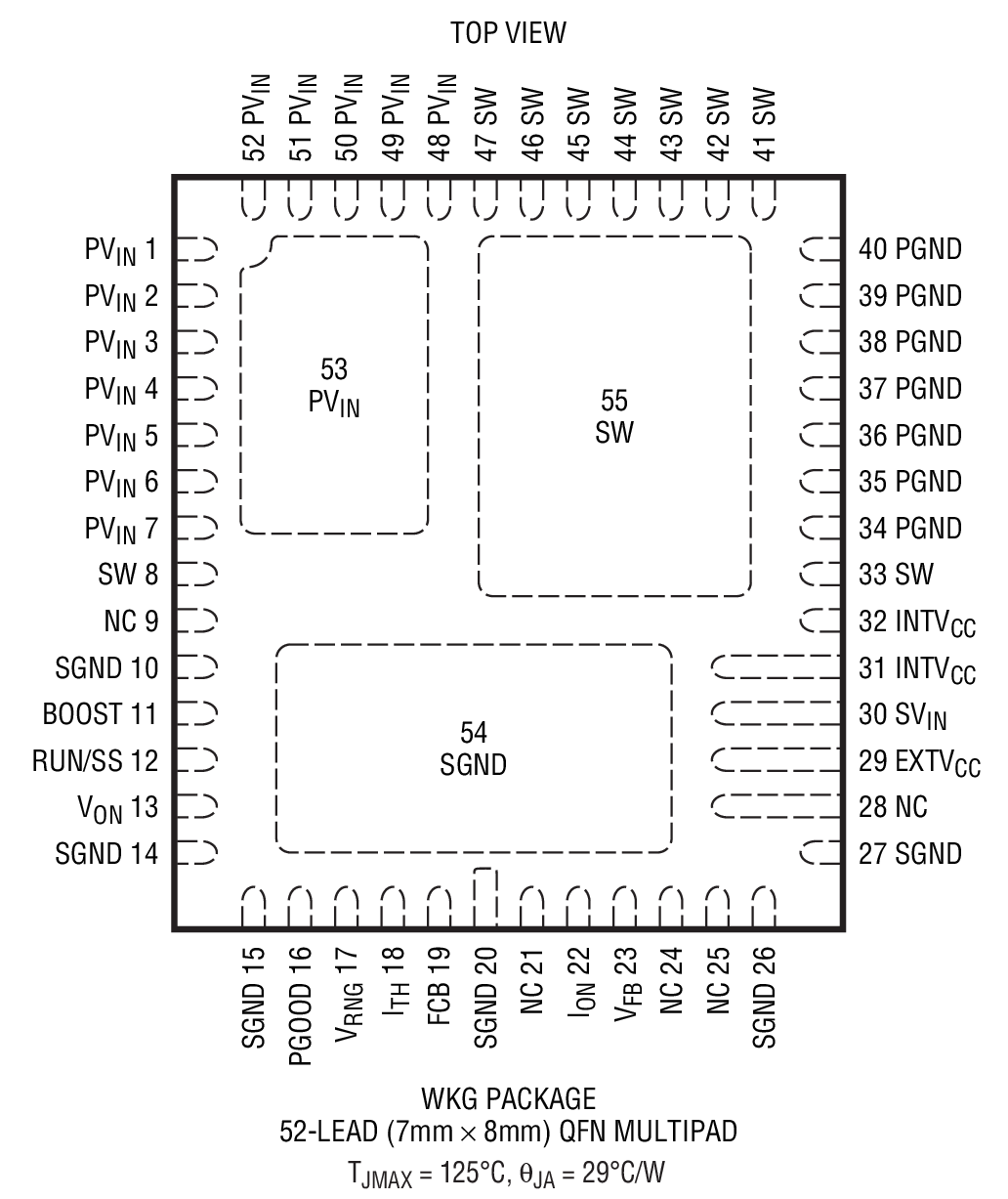

Available in a 7mm × 8mm 52-Pin QFN Package

Part Models: 4
1ku List Price: Starting From $8.40

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC3609EWKG#PBF	52-Lead QFN (7mm x 7mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3609EWKG#TRPBF	52-Lead QFN (7mm x 7mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3609IWKG#PBF	52-Lead QFN (7mm x 7mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3609IWKG#TRPBF	52-Lead QFN (7mm x 7mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Circuit Monitors 1
LTC2960	RECOMMENDED FOR NEW DESIGNS	36V Nano-Current Two-Input Voltage Monitor
Power System Managers & Sequencers 1
LTC2974	RECOMMENDED FOR NEW DESIGNS	4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement
Protection Switches & Controllers 1
LT4363	RECOMMENDED FOR NEW DESIGNS	High Voltage Surge Stopper with Current Limit
Switching Regulators & Controllers 1
LTC3880	RECOMMENDED FOR NEW DESIGNS	Dual Output PolyPhase Step-Down DC/DC Controller with Digital Power System Management

Tools & Simulations

LTspice 2

Models for the following parts are available in LTspice:

LTC3609

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

LTC3609EWKG Demo Board | Monolithic, 5V ≤ VIN ≤ 28V, VOUT = 1.5V/1.8V/2.5V/3.3V @ 6A

Buy Now View Details

Product Details

Demonstration circuit 1320 is a high power density step-down DC/DC converter featuring the LTC3608EWKG (DC1320A-A) or the LTC3609EWKG (DC1320A-B) high current, high input voltage monolithic DC/DC step-down converter. The input voltage of the DC1320A-B is from 5V to 28V and it provides a jumper-selectable output voltage of 1.5V, 1.8V, 2.5V, or 3.3V @ 6A.

Resources

DC1320A - Demo Manual
5/14/2012

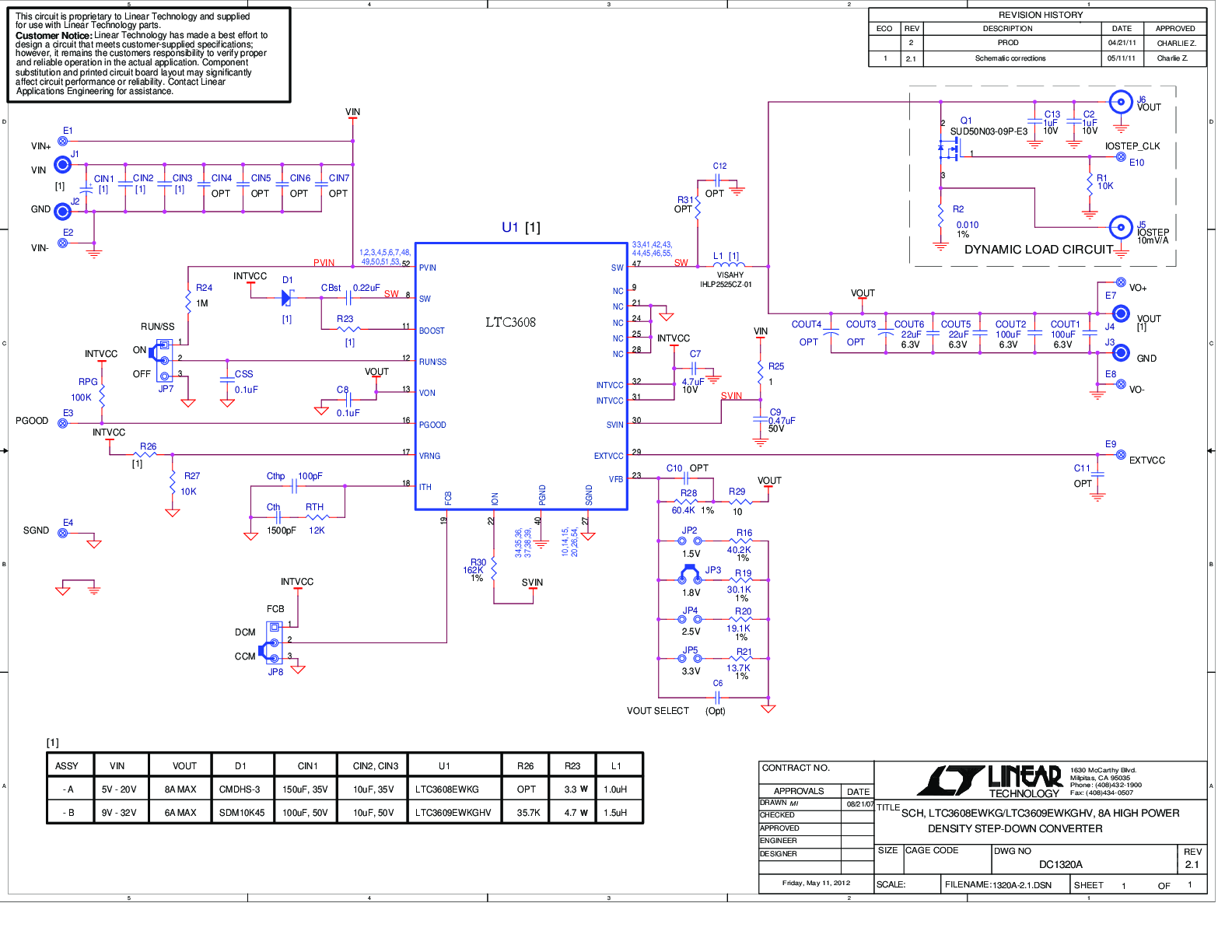

DC1320A - Schematic
5/14/2012

DC1320A - Design Files
5/14/2012
