LTC3855

PRODUCTION

Dual, Multiphase Synchronous DC/DC Controller with Differential Remote Sense

Data Sheet

Part Models: 8
1ku List Price: Starting From $3.81

Viewing:

Part Details

Dual, 180° Phased Controllers Reduce Required Input Capacitance and Power Supply Induced Noise
High Efficiency: Up to 95%
R_SENSE or DCR Current Sensing
Programmable DCR Temperature Compensation
±0.75% 0.6V Output Voltage Accuracy
Phase-Lockable Fixed Frequency 250kHz to 770kHz
True Remote Sensing Differential Amplifier
Dual N-Channel MOSFET Synchronous Drive
Wide V_IN Range: 4.5V to 38V
V_OUT Range: 0.6V to 12.5V without Differential Amplifier
V_OUT Range: 0.6V to 3.3V with Differential Amplifier
Clock Input and Output for Up to 12-Phase Operation
Adjustable Soft-Start or V_OUT Tracking
Foldback Output Current Limiting
Output Overvoltage Protection

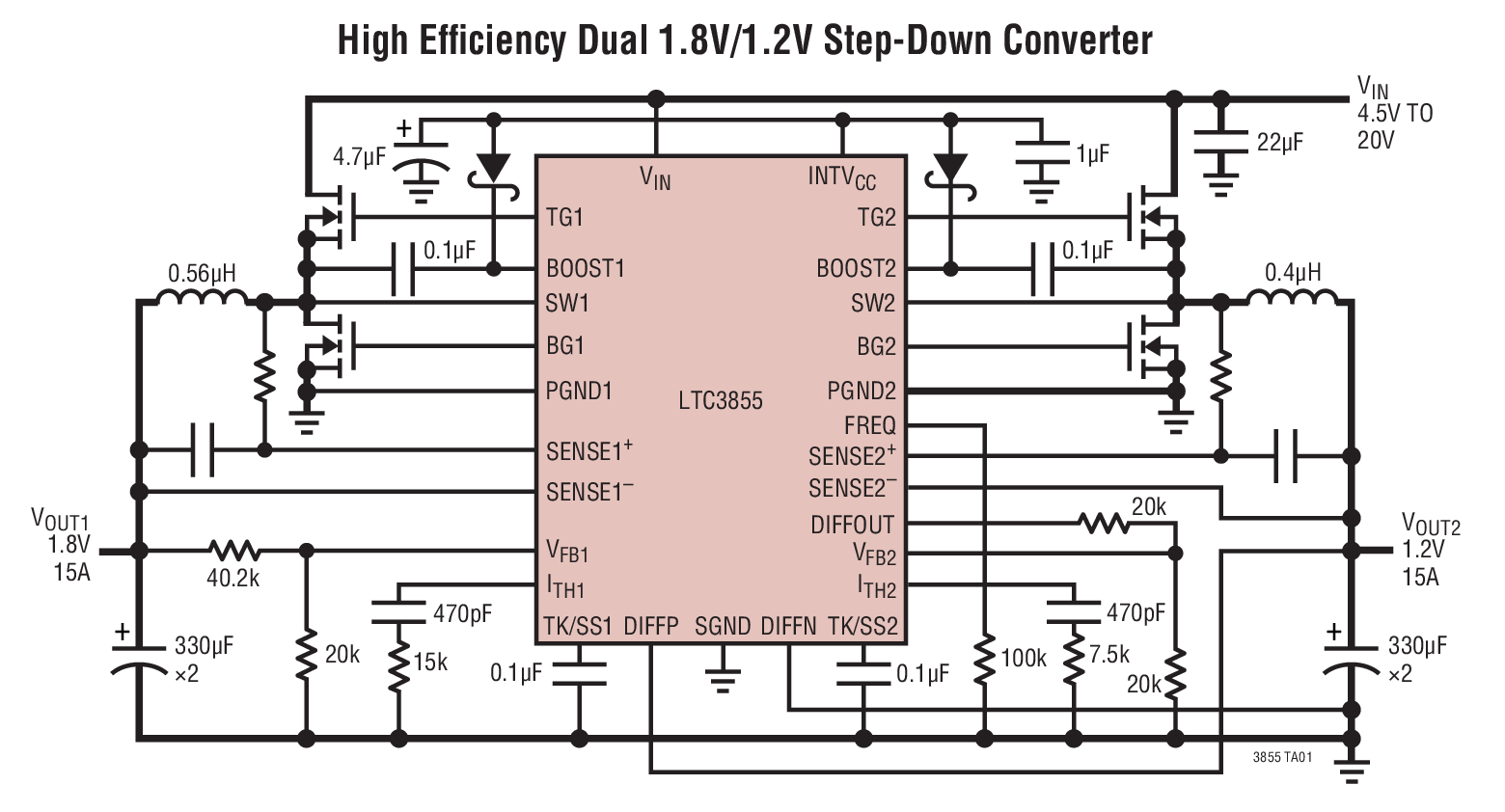

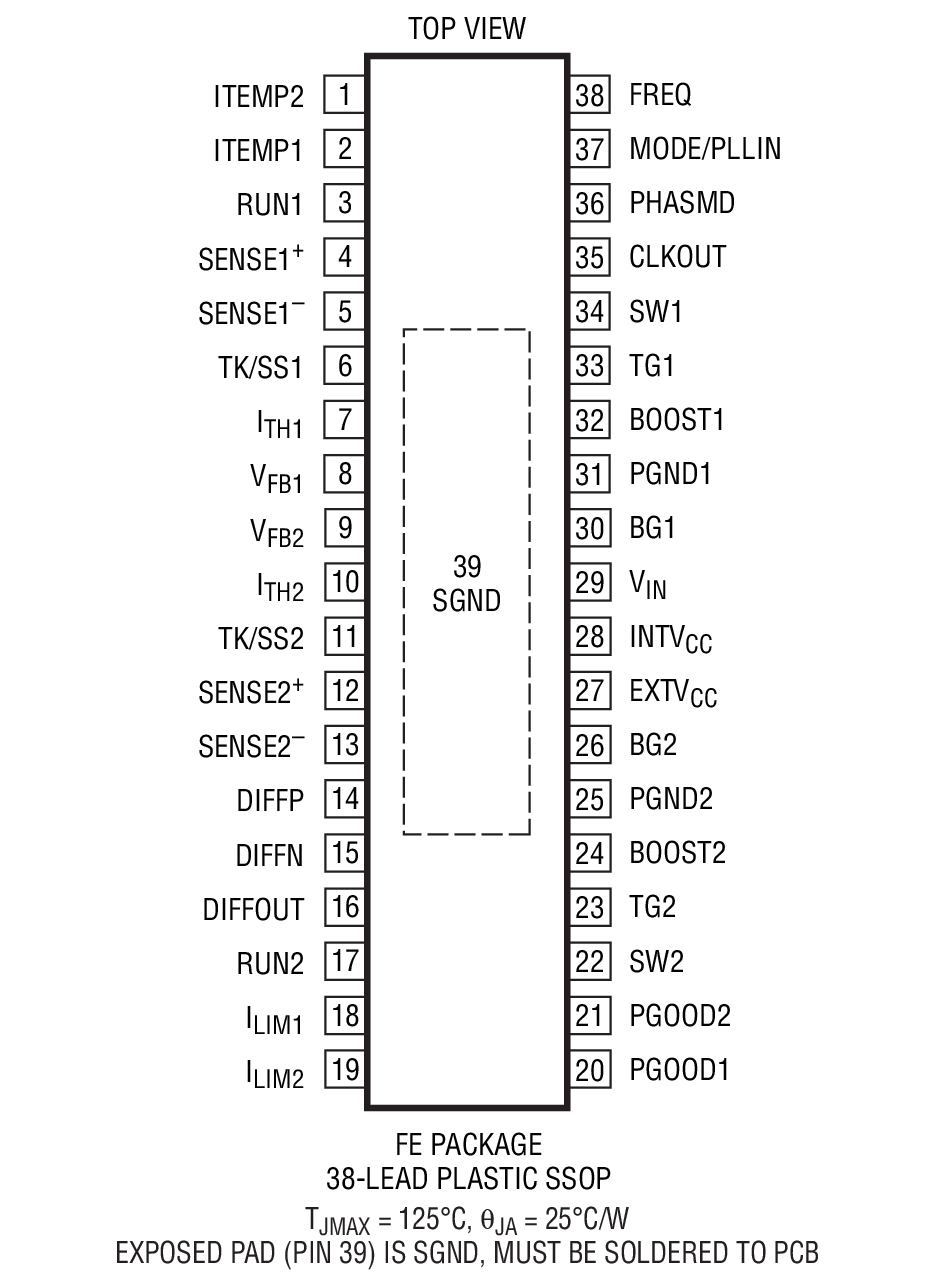

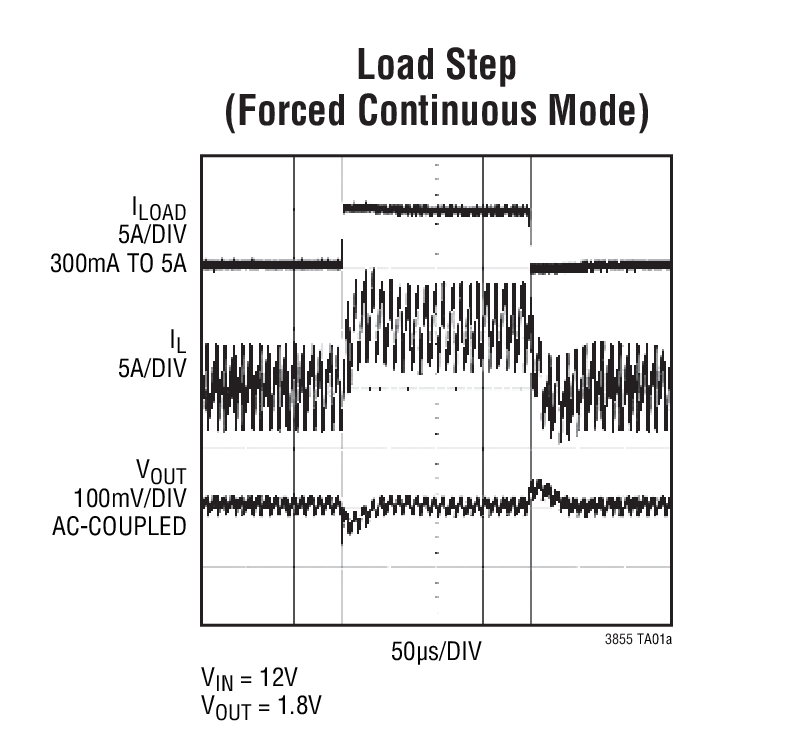

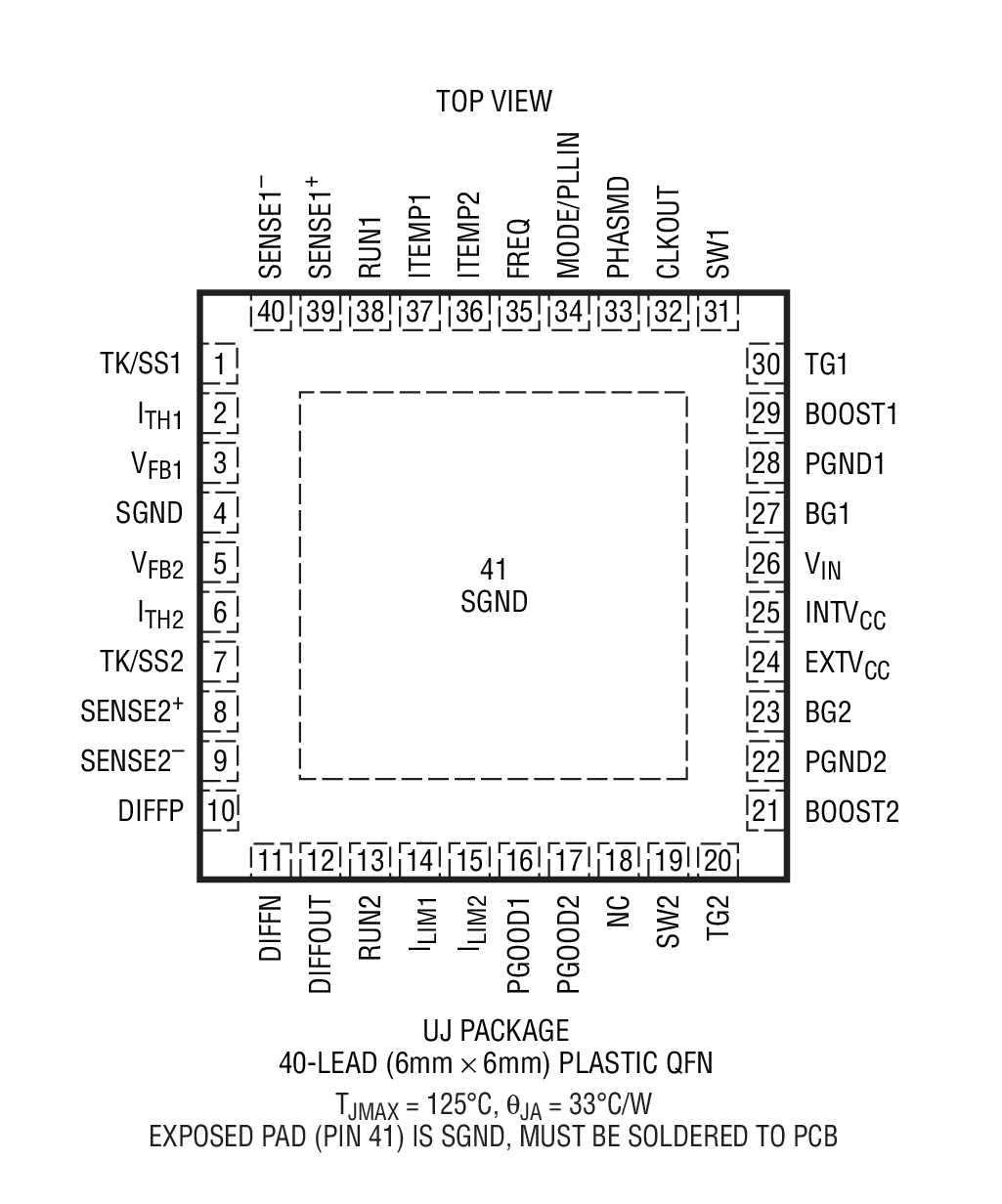

40-Pin (6mm × 6mm) QFN and 38-Lead FE Packages

Part Models: 8
1ku List Price: Starting From $3.81

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC3855EFE#PBF	38-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3855EFE#TRPBF	38-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3855EUJ#PBF	40-Lead QFN (6mm x 6mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3855EUJ#TRPBF	40-Lead QFN (6mm x 6mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3855IFE#PBF	38-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3855IFE#TRPBF	38-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3855IUJ#PBF	40-Lead QFN (6mm x 6mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3855IUJ#TRPBF	40-Lead QFN (6mm x 6mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 6, 2022 - 22_0068 Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL
		PCN22_0068_Form Material_Report Delta Qualification Matrix
LTC3855EFE#PBF	PRODUCTION
LTC3855EFE#TRPBF	PRODUCTION
LTC3855IFE#PBF	PRODUCTION
LTC3855IFE#TRPBF	PRODUCTION
Nov 8, 2021 - 20_0245 Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)
		PCN20_0245_Form Material_Report Delta Qualification Matrix Other Qualification Results Summary
LTC3855EFE#PBF	PRODUCTION
LTC3855EFE#TRPBF	PRODUCTION
LTC3855EUJ#PBF	PRODUCTION
LTC3855EUJ#TRPBF	PRODUCTION
LTC3855IFE#PBF	PRODUCTION
LTC3855IFE#TRPBF	PRODUCTION
LTC3855IUJ#PBF	PRODUCTION
LTC3855IUJ#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Circuit Monitors 1
LTC2960	RECOMMENDED FOR NEW DESIGNS	36V Nano-Current Two-Input Voltage Monitor
Power System Managers & Sequencers 1
LTC2974	RECOMMENDED FOR NEW DESIGNS	4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement
Protection Switches & Controllers 1
LTC4364	RECOMMENDED FOR NEW DESIGNS	Surge Stopper with Ideal Diode
Switching Regulators & Controllers 1
LTC3880	RECOMMENDED FOR NEW DESIGNS	Dual Output PolyPhase Step-Down DC/DC Controller with Digital Power System Management

Tools & Simulations

LTspice 2

Models for the following parts are available in LTspice:

LTC3855

LTpowerCAD 6

Design tools for the following parts are available in LTpowerCAD:

LTC3855

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

LTpowerCAD^® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.

Evaluation Kits

LTC3855EUJ Demo Board | Dual Output, VIN = 4.5V to 14V, VOUT1 = 1.8V @ 17A, VOUT2 = 1.2V @ 17A

Buy Now View Details

Product Details

Demonstration circuit DC1441A is a dual output synchronous buck converter featuring the LTC3855EUJ. The board provides two outputs of 1.8V/17A and 1.2V/17A from an input voltage of 4.5V to 14V at a switching frequency of 400kHz.

Resources

DC1441A - Design Files
1/13/2010

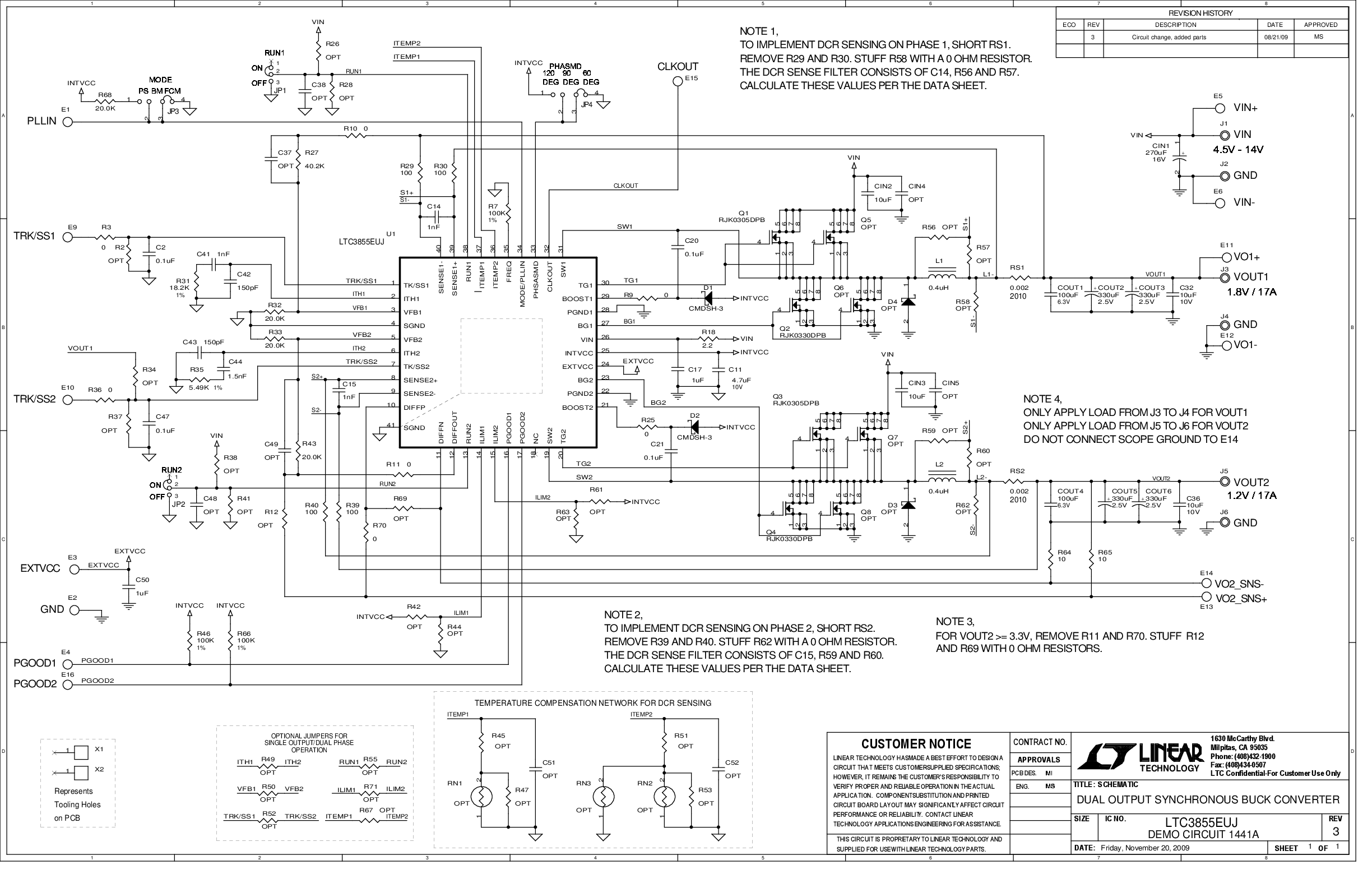

DC1441A - Schematic
1/13/2010

DC1441A - Demo Manual
1/13/2010

LTC3855EFE Demo Board | Dual Output VIN = 13V to 36V, VOUT1 = 12V @ 6A, VOUT2 = 5V @ 10A

Buy Now View Details

Product Details

Demonstration circuit DC1617A is a dual output synchronous buck converter featuring the LTC3855EFE in a high density, two sided drop-in layout with power components on the top and the control circuit on the bottom. The package style for the LTC3855EFE is a 38-lead TSSOP. The board comes in two assembly types. The –B assembly is a high power, 12V/6A and 5V/10A converter with a 13V to 36V input. A sense resistor is used to provide a precise current limit. Unlike the –A assembly, on the –B assembly the remote sense diff amp is bypassed since V_OUT2 is > 3.3V.

Resources

DC1617A - Schematic
12/14/2011

DC1617A - Design Files
12/2/2011

DC1617A - Demo Manual
12/2/2011

LTC3855EFE Demo Board | Dual Output VIN = 4.5V to 26V, VOUT1 = 2.5V @ 15A, VOUT2 = 1.8V @ 15A

Buy Now View Details

Product Details

Demonstration circuit DC1617A is a dual output synchronous buck converter featuring the LTC3855EFE in a high density, two sided drop-in layout with power components on the top and the control circuit on the bottom. The package style for the LTC3855EFE is a 38-lead TSSOP. The board comes in two assembly types. The –A assembly provides 2.5V/15A and 1.8V/15A from a 4.5V to 26V input. DCR inductor sensing is used to provide the highest efficiency. The current limit is NTC compensated to provide the minimal amount of variation over temperature. The -A also features remote sensing for V_OUT2.

Resources

DC1617A - Schematic
12/14/2011

DC1617A - Design Files
12/2/2011

DC1617A - Demo Manual
12/2/2011

LTC3855EUJ Demo Board | Dual Output, VIN = 4.5V to 25V, VOUT1 = 3.3V @ 5A, VOUT2 = 2.5V @ 5A

Buy Now View Details

Product Details

Demonstration circuit 1586A is a high efficiency, dual-output (3.3V and 2.5V), synchronous buck converter with 4.5V to 25V input range. It can supply 5A maximum load current at 3.3V and 2.5V outputs. The demo board uses the LTC3855EUJ controller. The LTC3855 is a feature-rich dual-output dual-phase synchronous buck controller with on-chip drivers, remote output voltage sensing (V_OUT2) and inductor DCR temperature compensation.

Resources

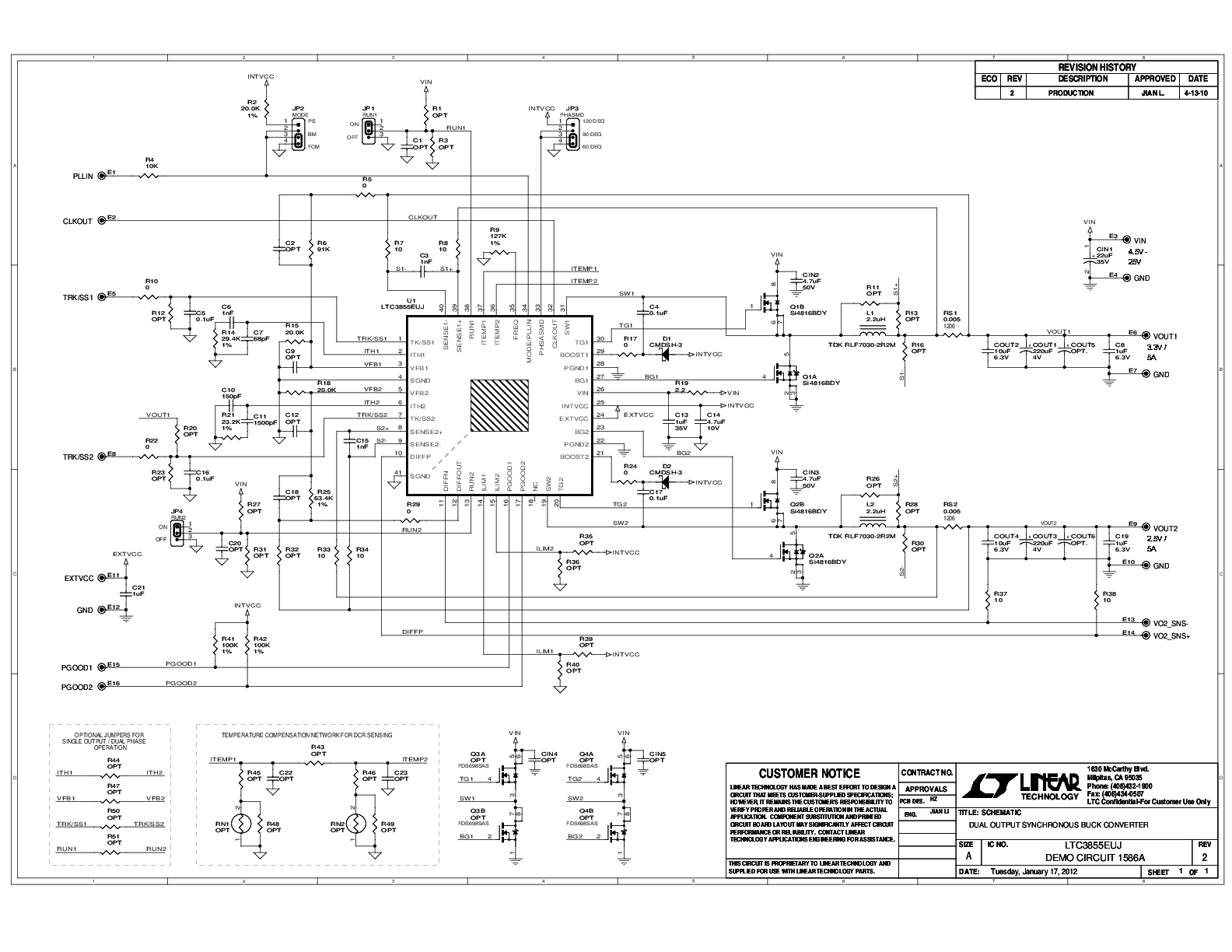

DC1586A - Schematic
1/18/2012

DC1586A - Demo Manual
1/18/2012

DC1586A - Design Files
8/25/2010

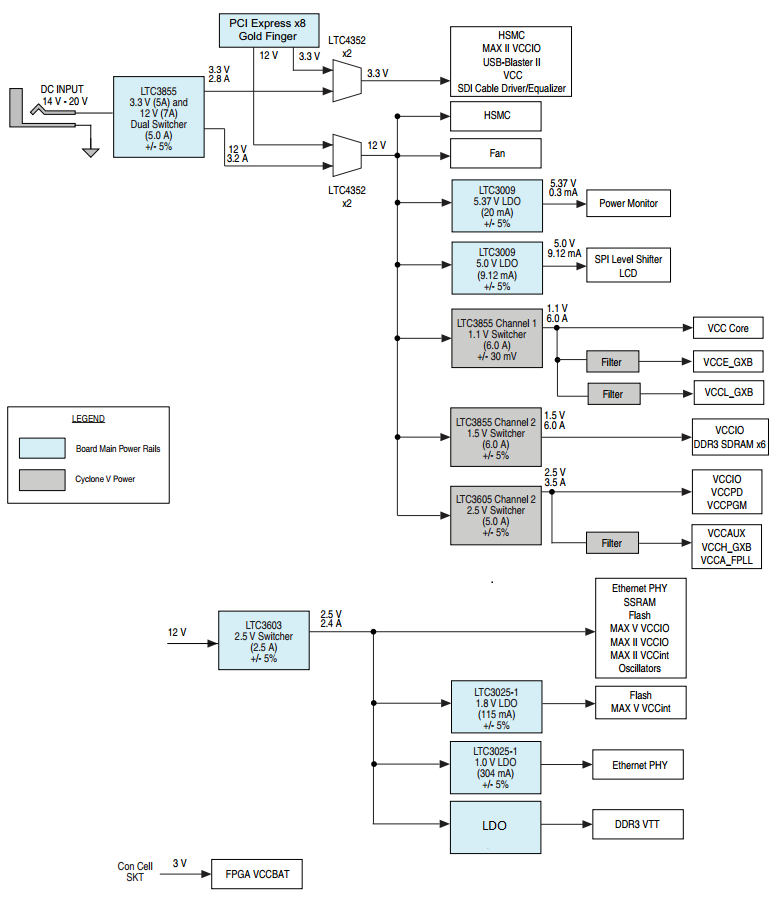

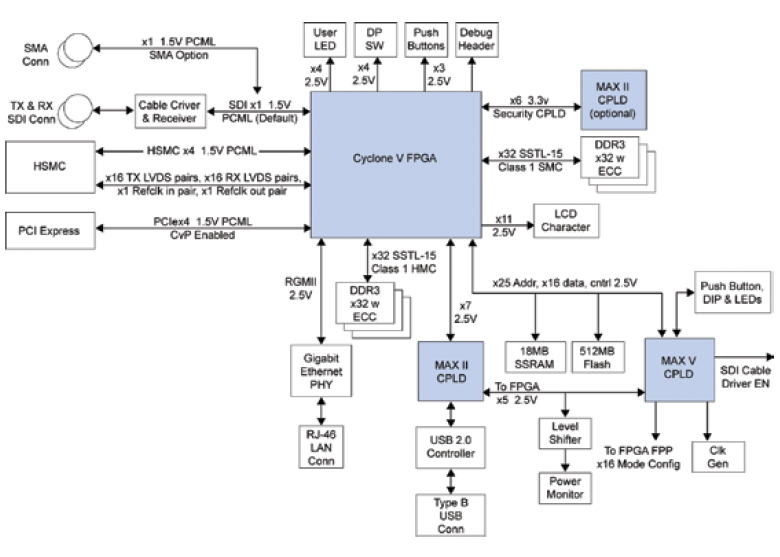

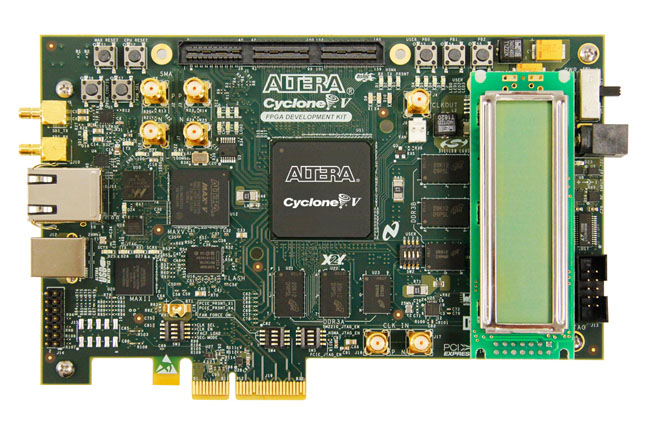

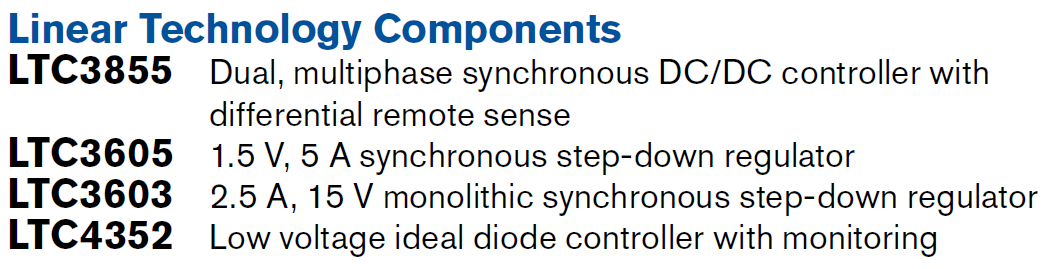

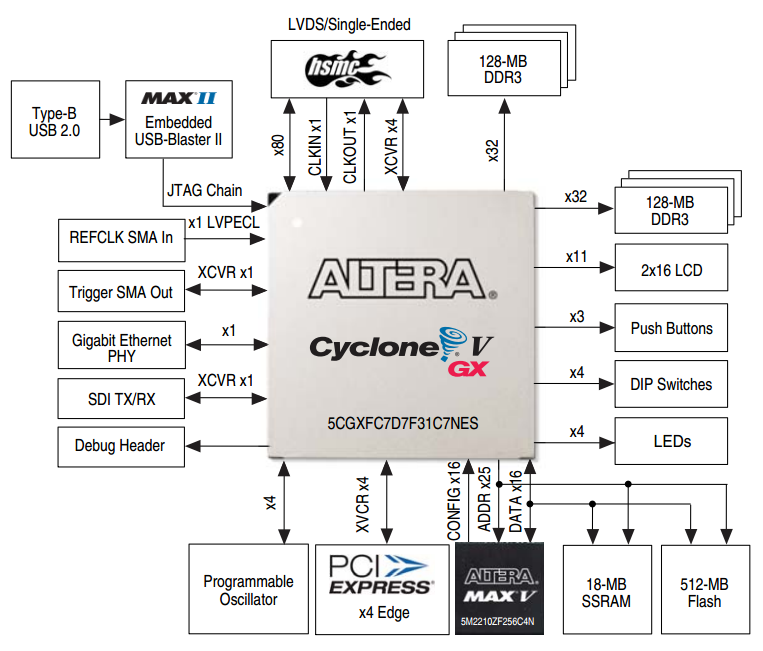

Reference Designs
