LTM4608

PRODUCTION

8A, Low V_IN DC/DC µModule (Power Module) with Tracking, Margining, Multiphase and Frequency Synchronization

Part Models: 2
1ku List Price: Starting From $13.30

Viewing:

Part Details

Complete Standalone Power Supply
±1.5% Output Voltage Regulation
2.7V to 5.5V Input Voltage Range
8A DC, 10A Peak Output Current
0.6V Up to 5V Output
Output Voltage Tracking and Margining
Power-Good Tracking and Margining
Multiphase Operation
Parallel Current Sharing
Onboard Frequency Synchronization
Spread Spectrum Frequency Modulation
Overcurrent/Thermal Shutdown Protection
Current Mode Control/Fast Transient Response
Selectable Burst Mode^® Operation

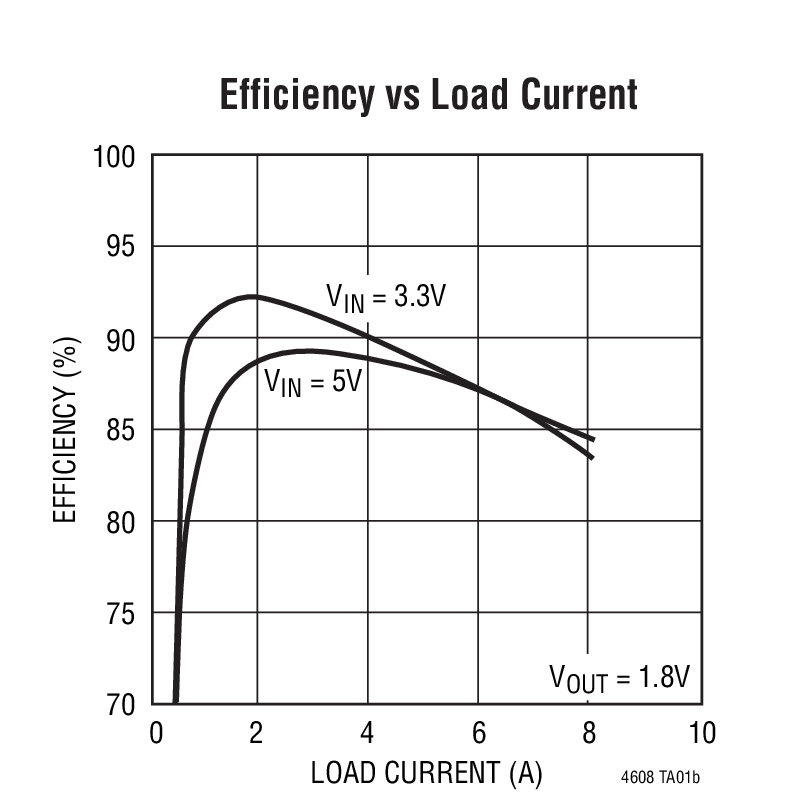

Up to 95% Efficiency
Output Overvoltage Protection

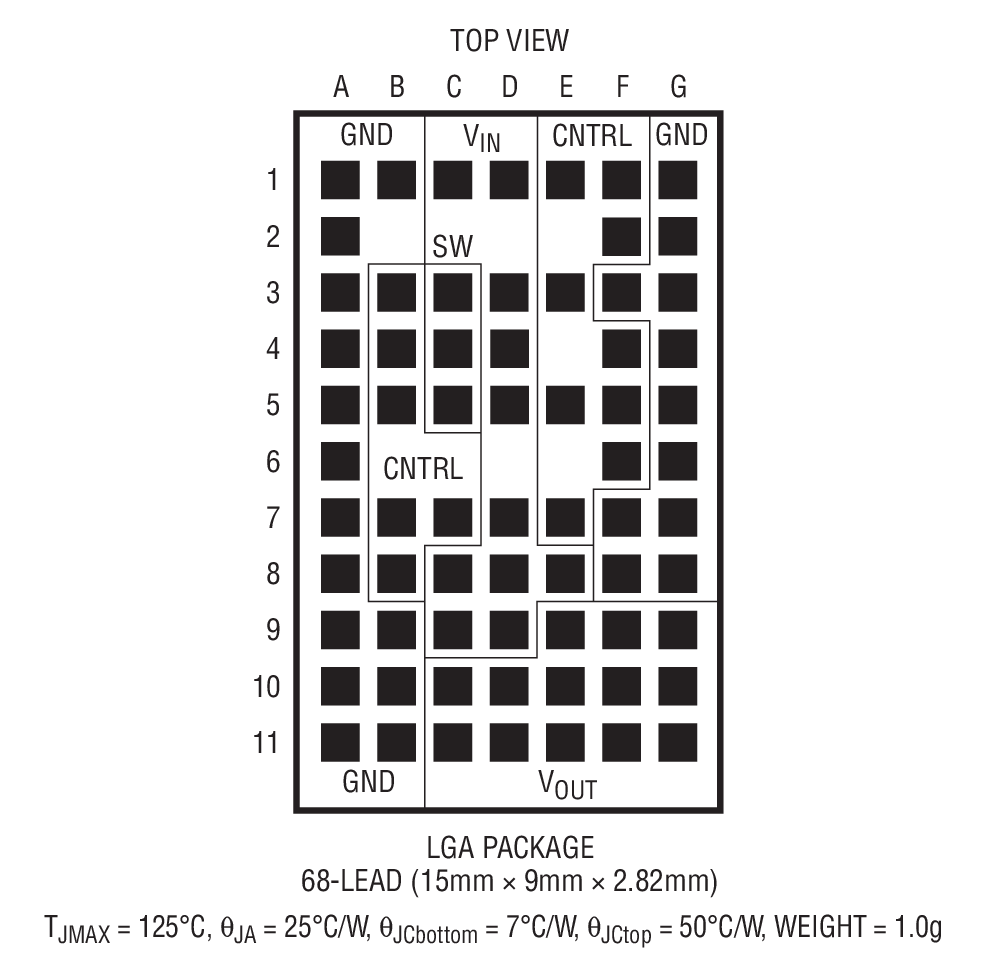

Small Surface Mount Footprint, Low Profile (15mm × 9mm × 2.8mm) LGA Package

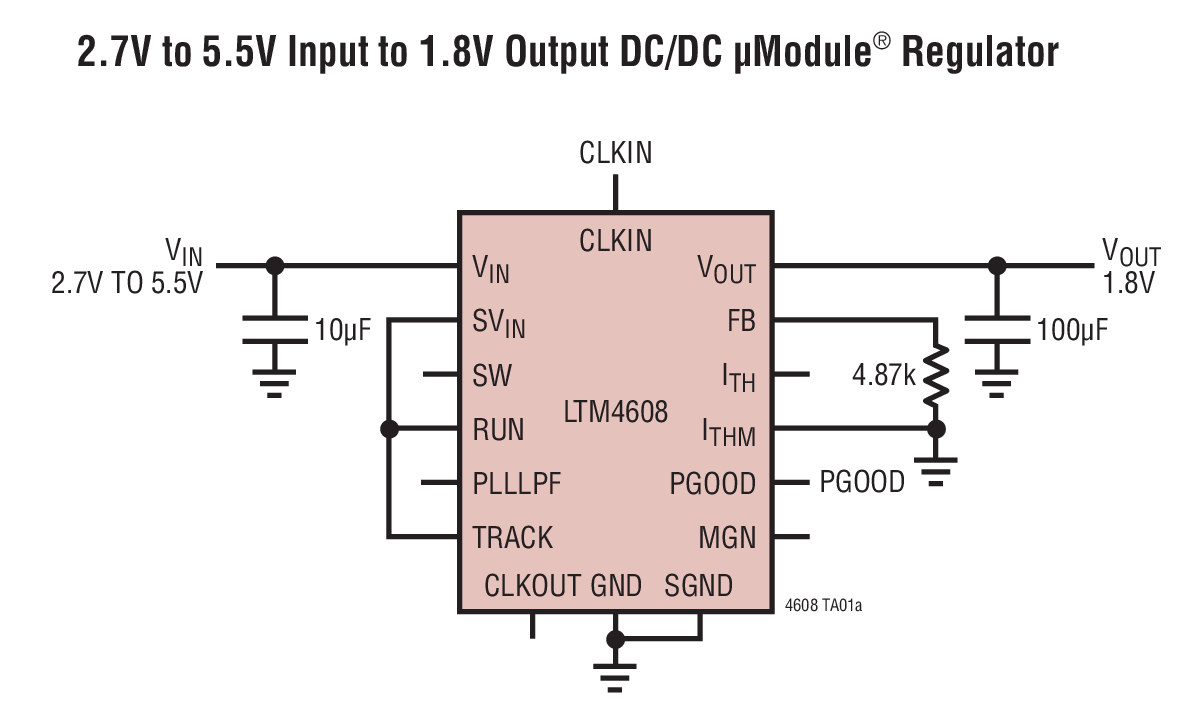

The LTM4608 is a complete 8A switch mode DC/DC power supply. Included in the package are the switching controller, power FETs, inductor and all support components. Operating over an input voltage range of 2.7V to 5.5V, the LTM4608 supports an output voltage range of 0.6V to 5V, set by a single external resistor. This high efficiency design delivers up to 8A continuous current (10A peak). Only bulk input and output capacitors are needed.

The low profile package (2.8mm) enables utilization of unused space on the back side of PC boards for high density point-of-load regulation. The high switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. The device supports frequency synchronization, programmable multiphase and/or spread spectrum operation, output voltage tracking for supply rail sequencing and voltage margining.

Fault protection features include overvoltage protection, overcurrent protection and thermal shutdown. The power module is offered in a compact and thermally enhanced 15mm × 9mm × 2.8mm LGA package. The LTM4608 is Pb-free and RoHS compliant.

For easier PC board layout and assembly due to increased spacing between land grid pads, please refer to the LTM4608A.


	Notes
LTM4608	-
LTM4608A	Smaller pad sizes provide more distance between adjacent pads therefore there is less chance of solder paste or solder spreading outside the pad area

Applications

Telecom, Networking and Industrial Equipment
Storage Systems
Point of Load Regulation

Part Models: 2
1ku List Price: Starting From $13.30

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTM4608EV#PBF	68-Lead LGA (15mm x 9mm x 2.82mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTM4608IV#PBF	68-Lead LGA (15mm x 9mm x 2.82mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jul 21, 2021 - 21_0159 Ink Mark to Laser Mark Conversion for µModule
		PCN21_0159_Form Material_Report Delta Qualification Matrix
LTM4608EV#PBF	PRODUCTION
LTM4608IV#PBF	PRODUCTION
Feb 28, 2020 - 20_0123 Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia
		PCN20_0123_Form Material_Report Test Correlation Report Other Qualification Results Summary
LTM4608EV#PBF	PRODUCTION
LTM4608IV#PBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Oscillators 1
LTC6909	PRODUCTION	1 to 8 Output, Multiphase Silicon Oscillator with Spread Spectrum Modulation
Power System Managers & Sequencers 1
LTC2974	RECOMMENDED FOR NEW DESIGNS	4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement

Parts	Product Life Cycle	Description
LTM4608A	PRODUCTION	Low V_IN, 8A DC/DC μModule (Power Module) Regulator with Tracking, Margining, and Frequency Synchronization

Tools & Simulations

LTspice 2

Models for the following parts are available in LTspice:

LTM4608
LTM4608A

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
