LT8607

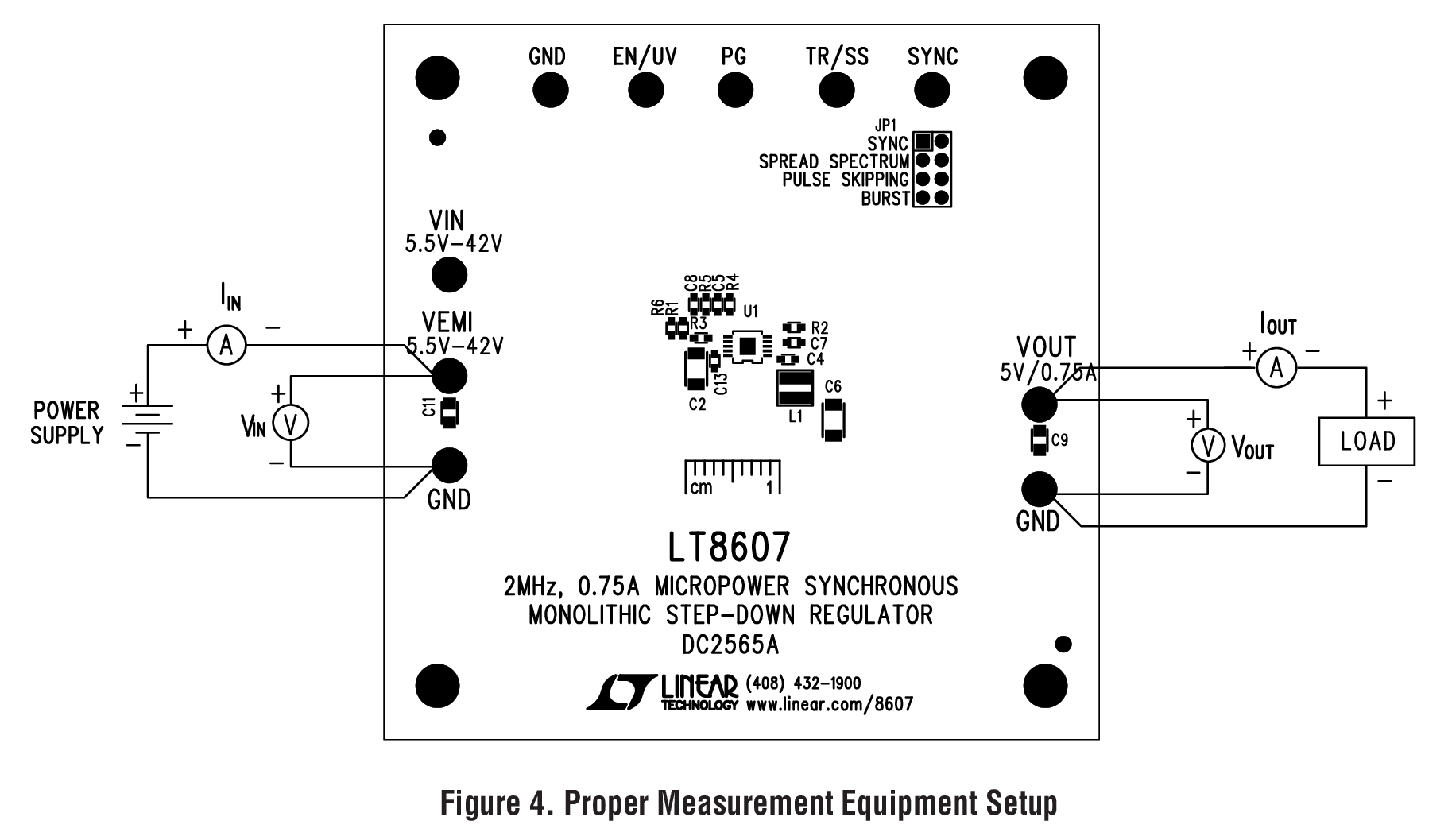

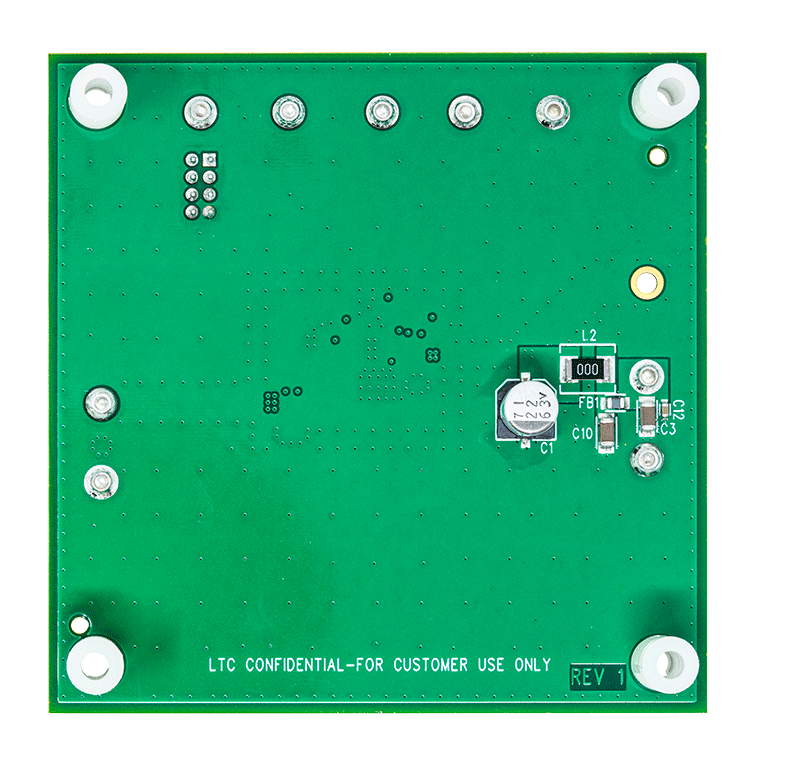

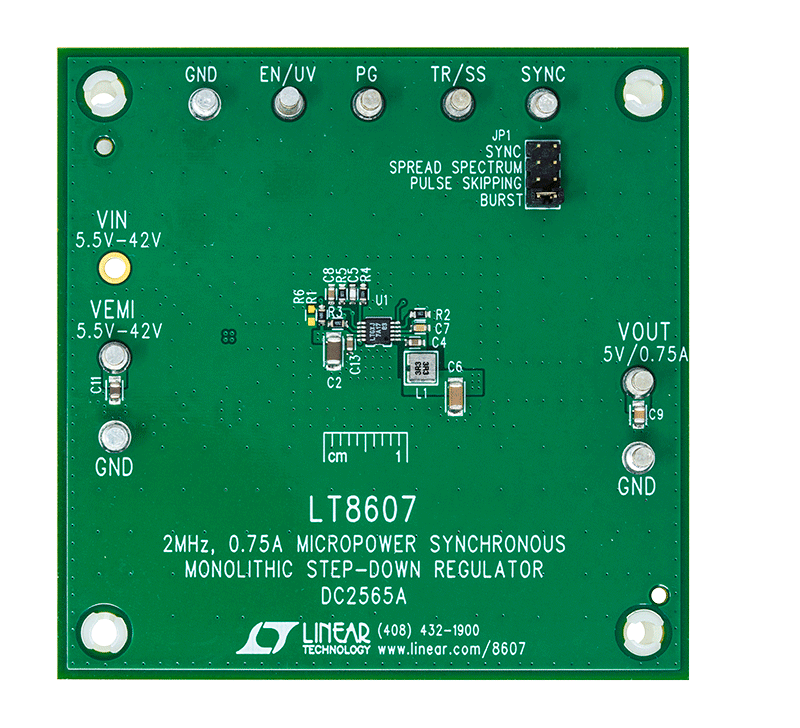

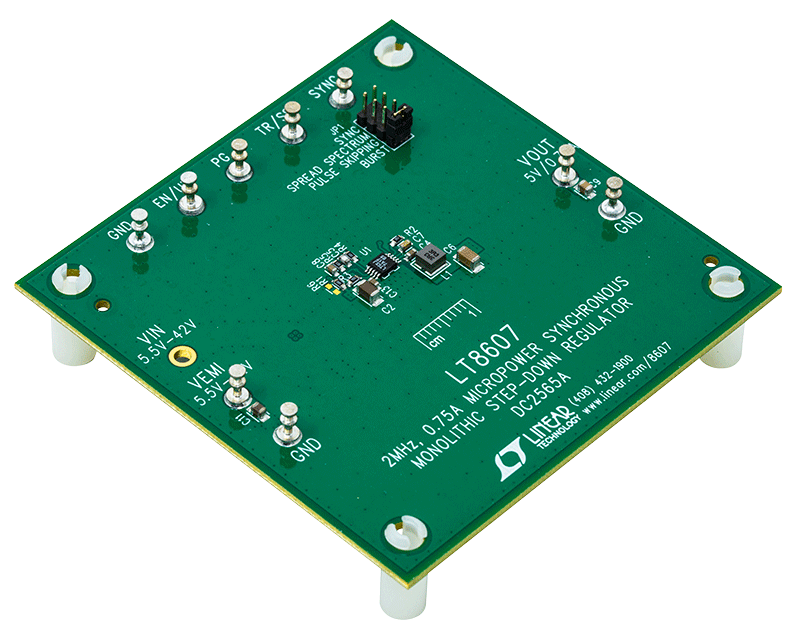

演示电路2565A是一款42V、0.75A微功耗同步降压型稳压器，内置LT8607。该演示板设计提供5V输出和5.5V至42V的输入。宽输入范围支持各种输入源，如汽车电池和工业电源。LT8607是一款紧凑型高效率、高速同步单芯片降压型开关稳压器，当输出稳定在5V时静态电流小于3μA。LT8607中内置顶部和底部电源开关、补偿元件和其他必要电路，可将外部元件数量降至较低并简化设计。

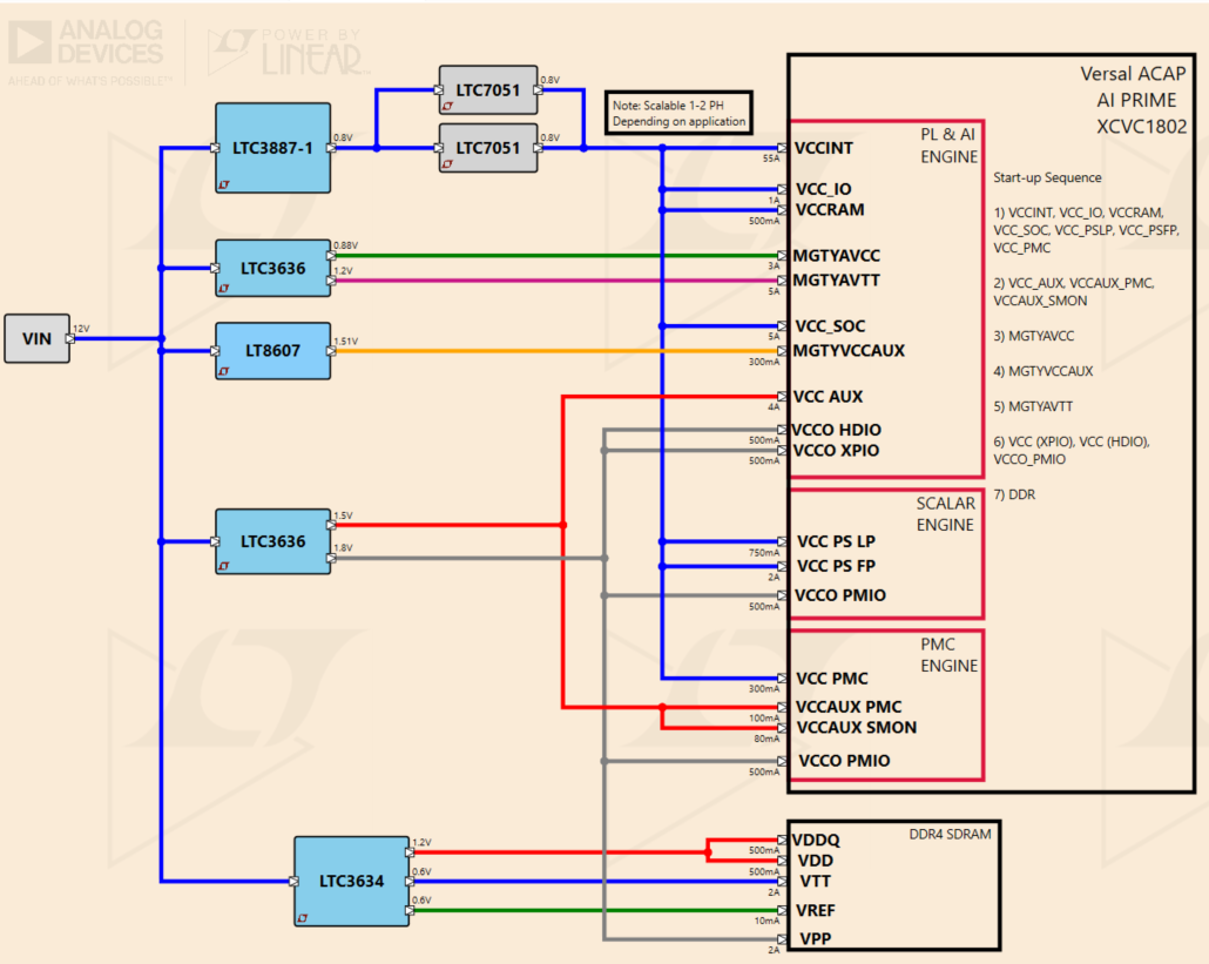

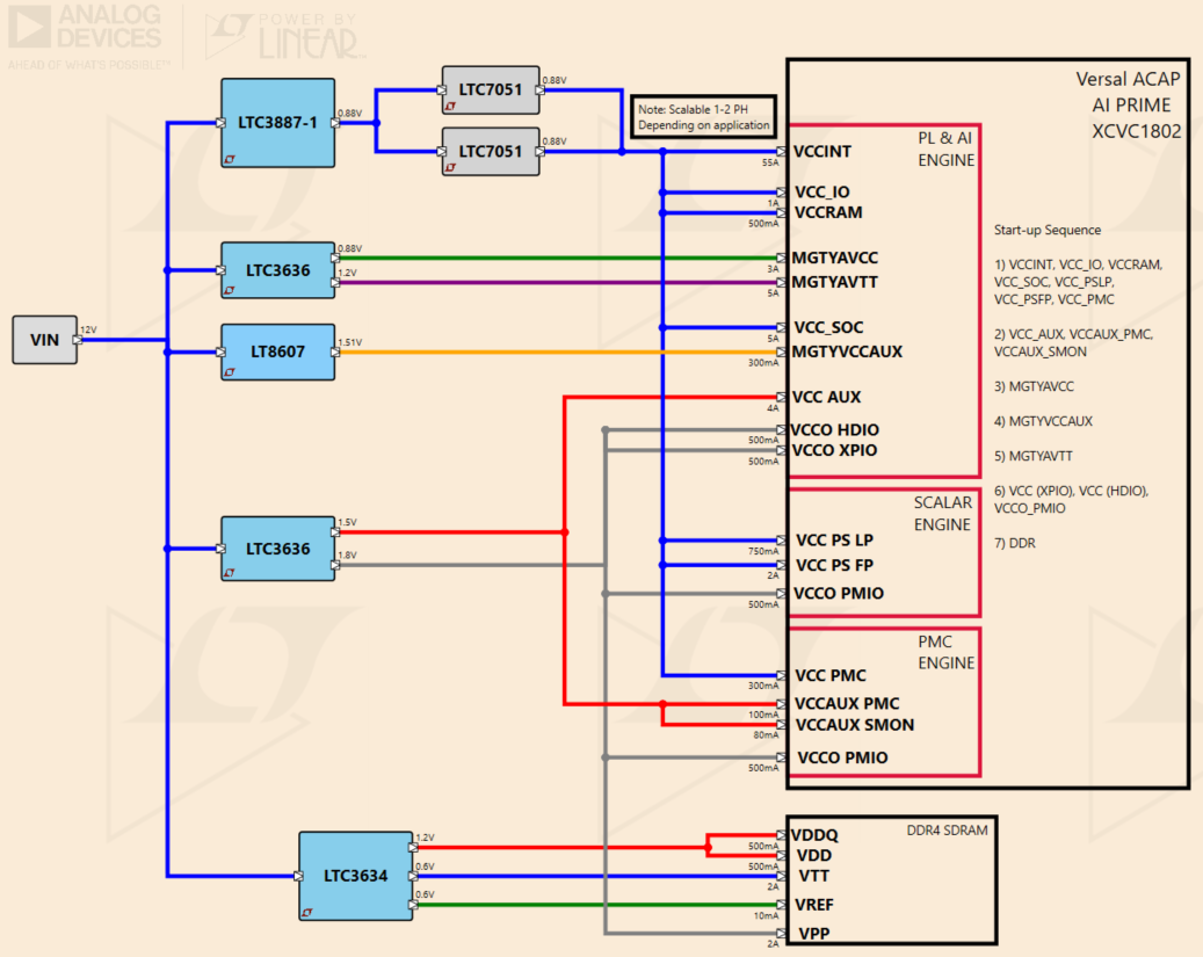

ADI Key Power Management Features for Versal PRIME XCXM1802 for Minimum Rails / PL Performance

• Proposed Solution implements new LTC3887-1/LTC7051 combo
• LTC3887-1 is a PMBus 2-phase, 2 loop, current mode controller. PMBus commands allow Vin, Vout, current, temperature, and fault status read back.
• LTC7051 is new Silent Switcher 2 ADI MOS capable of delivering increased DC load while switching at higher frequencies. Increased DC load allows for decreased phase count and higher current density. Increased Fsw allows for increase bandwidth and excellent transient response.
• LTC3636 is dual 6A, controlled on-time current mode monolithic (integrated FETs). Provides high performance compact solution for auxiliary rails.
• LT8607 is a compact, high efficiency, high speed 750mA synchronous monolithic.
• LTC3634 is a single chip solution for DDR rails providing VDD, VTT, and Vref in a monolithic solution.

• Alias Free Quad Channel data acquisition
• Alias free dual IEPE-Compatible Vibration Sensor Interface
• Channel Independent Excitation Source and Sensor Bias
• Analog Overvoltage and Undervoltage Protection
• Sensor Frequency Response from DC up to 54 kHz
• Synchronized, Full Bandwidth Data Measurement and Capture

Versal™ AI Prime series solves a broad range of industry-specific problems with performance and flexibility. Some of these cases include storage acceleration, data center network acceleration, 5G xHaul and Passive optical networks.

Analog Devices, Inc. supports Versal AI power management by offering a full comprehensive solution inclusive of their next generation PM Bus Controller and ADI’s DrMOS. The Versal Demonstration boards support Mid-Voltage and High-Voltage applications without power management. For a complete list power designs and use cases Versal AI Prime please contact your local FAE.

Key Featrues Include

• LTC3887-1 is a PMBus dual phase, current mode controller with ADI’s DrMOS. PMBus commands allow Vin, Vout, current, temperature, and fault status read back.
• LTC7051 is a new Silent Switcher 2 ADI’s DrMOS capable of delivering increased DC load while switching at higher frequencies.  Increased DC load allows for decreased phase count and higher current density.  Increased Fsw allows for increase bandwidth and excellent transient response..
• LTC3636 is a dual 6A, controlled on-time current mode monolithic (integrated FETs).  Provides high performance compact solution for auxiliary rails.
• LT8607 is a compact, high efficiency, high speed 750mA synchronous monolithic.
• LTC3634 is a single chip solution for DDR rails providing VDD, VTT, and Vref in a monolithic solution.

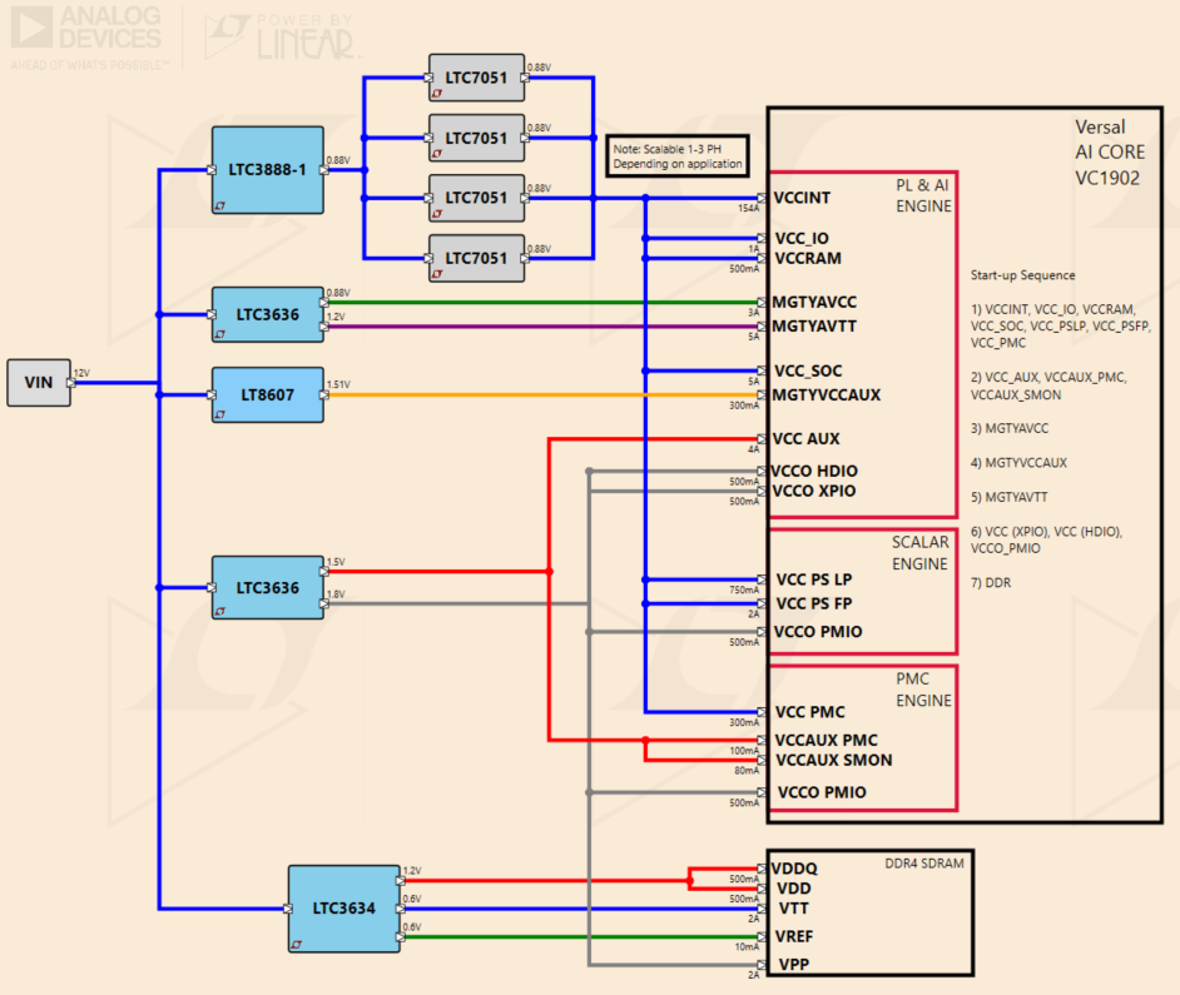

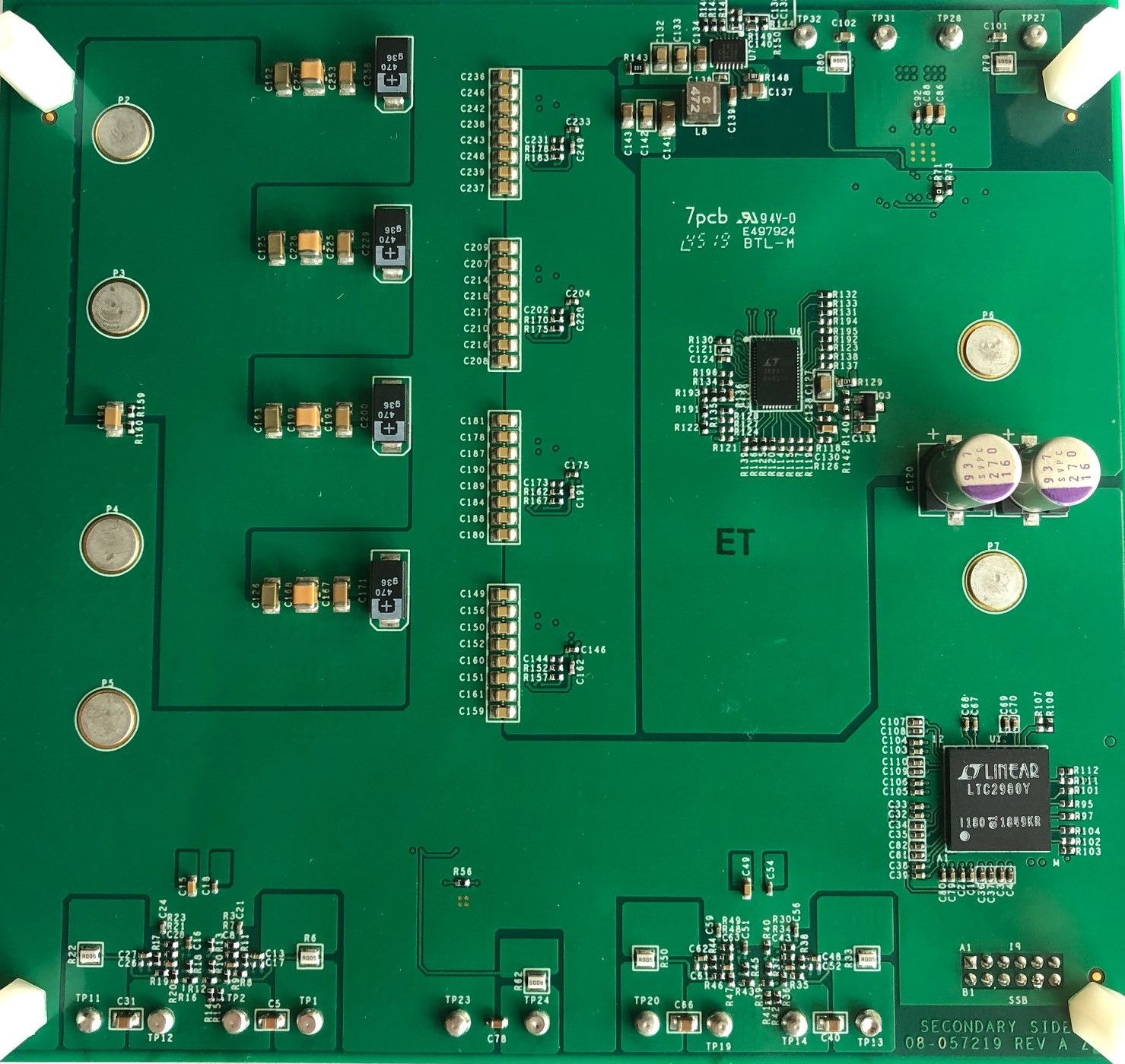

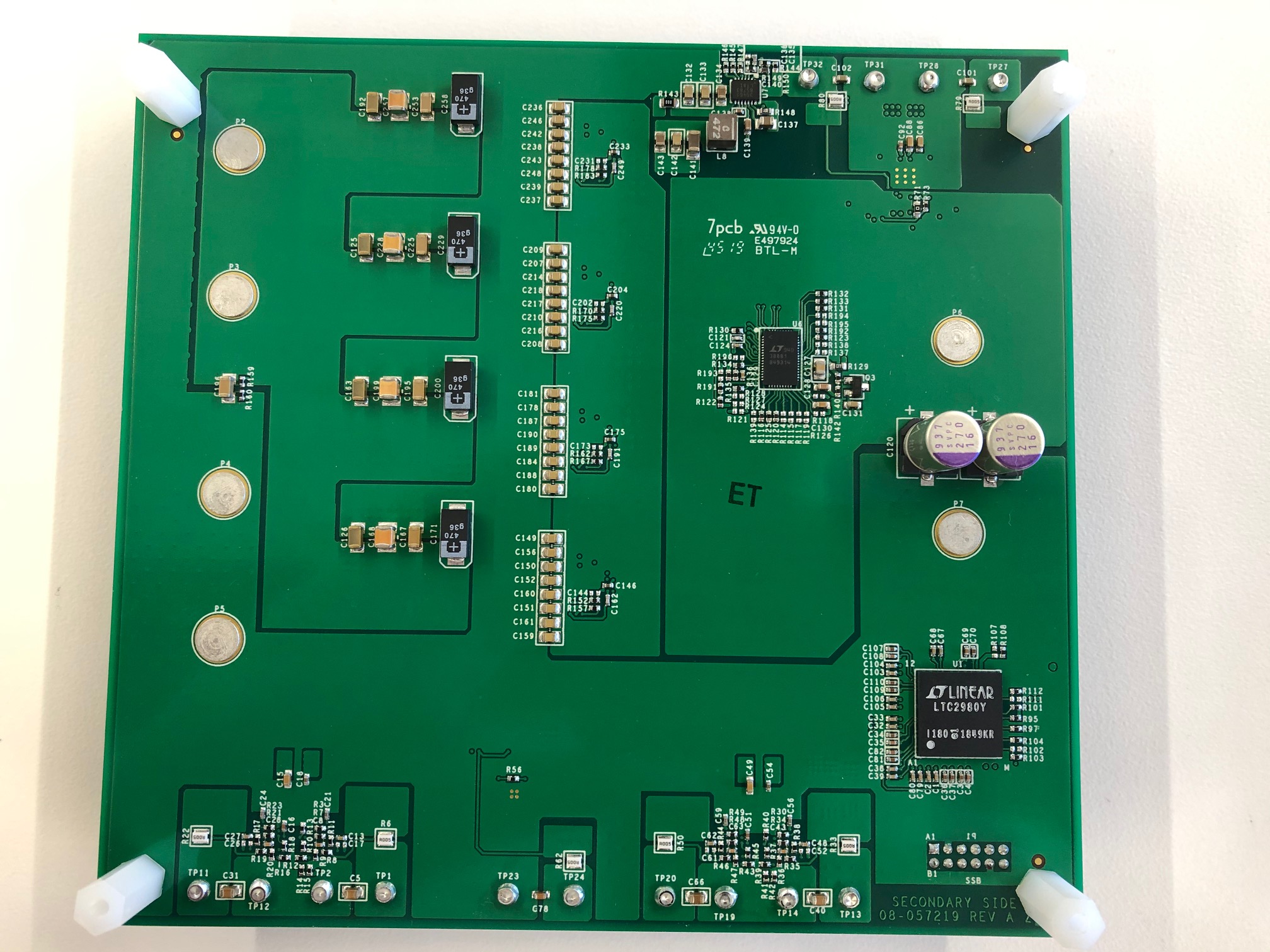

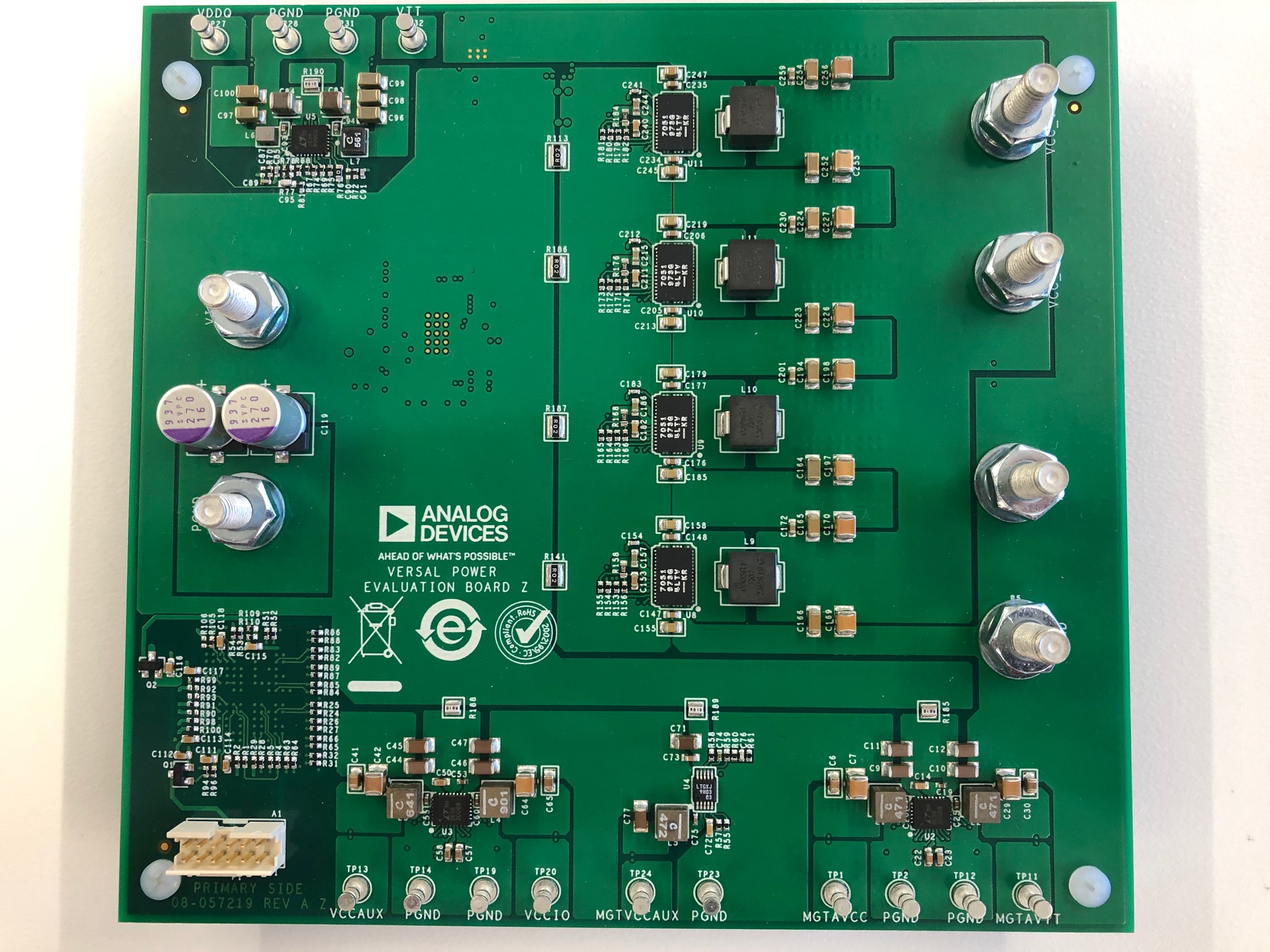

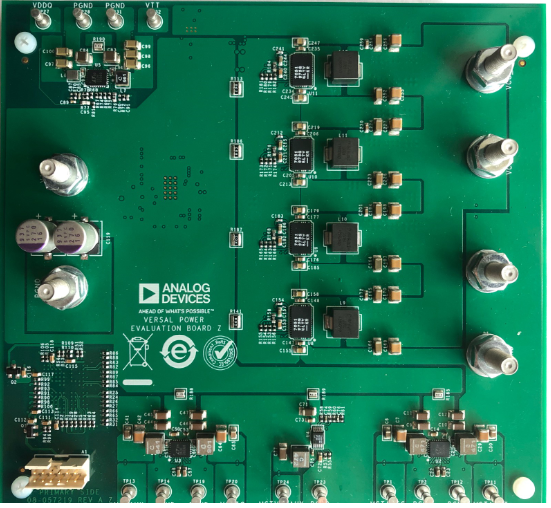

The ADI Versal AI Core Power Reference Design Board has been tested and proven to power the key rails for the Xilinx Versal AI Core ACAP series. Using a PMBUs Multi Phase DC/DC controller coupled with ADI SilentMOS (ADI version of DrMOS) to deliver up to 240A of output current.

The ADI LTC3888-1 is an 8 Phase PMBUs DC/DC controller that is coupled with the LTC7051 ADI SilentMOS to provide a flexible and scalable design that can be tailored as needed for both higher and lower power applications by adding or subtracting the LTC7051 ADI SilentMOS.

Request schematic for ADI power used on the board.

Contact ADI if you have questions about the ADI power management solutions used on this board.
