MAX14588

NOT RECOMMENDED FOR NEW DESIGNS

1A Adjustable Overcurrent and Overvoltage Protector with High Accuracy

Industry's Most Integrated Current-Limit and Overvoltage-Protection Solutions for Up to 40V and 1A

Data Sheet (Rev. 1)

Part Models: 2
1ku List Price: Starting From $3.18

Viewing:

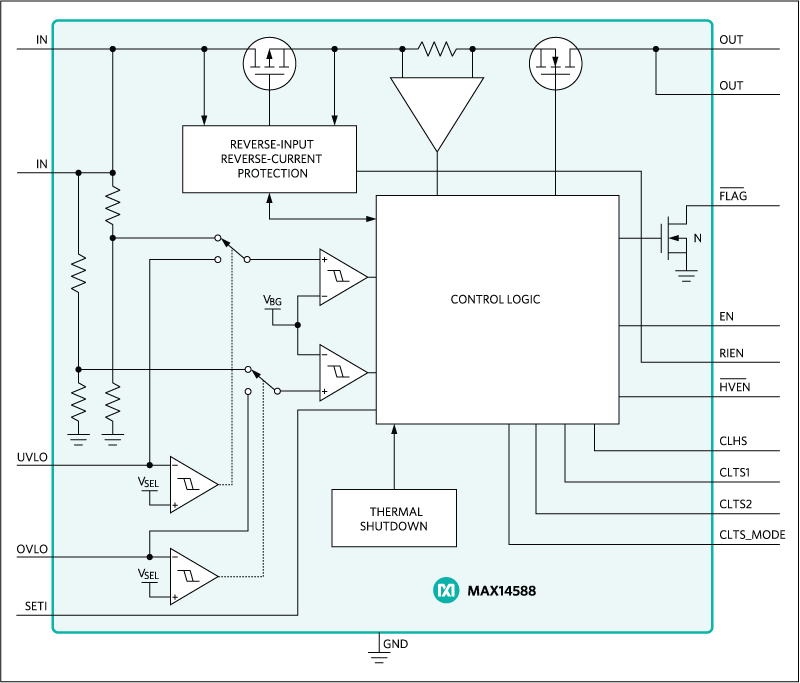

Part Details

Industrial Power Protection Increases Robustness
- Wide Input Supply Range: +4.5V to +36V
- Negative Input Tolerance to -36V
- Low R_ON 190mΩ (typ)
- Reverse Current Flow Control Input
- Thermal Overload Protection
- Extended -40°C to +125°C Temperature Range
Flexible Design Options
- Adjustable OVLO and UVLO Thresholds
- Programmable Forward-Current Limit: 0.15A to 1A
- Programmable Overcurrent Fault Response: Autoretry, Latch-Off, and Continuous
- Dual Enable Inputs: EN and High Voltage Active-Low HVEN
Saves Space
- 16-Pin, 3mm x 3mm, TQFN Package

Part Models: 2
1ku List Price: Starting From $3.18

Documentation

Data Sheet 1

MAX14588: 1A Adjustable Overcurrent and Overvoltage Protector with High Accuracy Data Sheet (Rev.1) 06/27/2017

Reliability Data 1

MAX14588 Reliability Data 01/12/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX14588ETE+	16-LFCSP-3X3X0.75	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14588ETE+T	16-LFCSP-3X3X0.75	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Sep 16, 2021 - 2188 DESIGN
		pcn_2188
MAX14588ETE+	PRODUCTION
MAX14588ETE+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Evaluation Kits

Evaluation Kit for the MAX14588

Buy Now View Details

Features and Benefits

4.5V to 36V Operating Voltage Range
Features TVS Diode and Schottky Diode
Evaluates Three Current-Limit Types, Current-Limit Threshold, OVLO, and UVLO
Proven PCB Layout
Fully Assembled and Tested

Product Details

The MAX14588 evaluation kit (EV kit) is a fully assembled and tested circuit board that demonstrates the MAX14588 adjustable overcurrent and overvoltage protector. The EV kit features a transient voltage suppressor (TVS) diode on the input and a Schottky diode on the output. Input power to the EV kit uses a 4.5V to 36V input supply.

The EV kit circuit can be configured to demonstrate the device’s different current-limit types, adjustable overvoltage, undervoltage, and current-limit threshold.

Applications

Condition Monitoring
Factory Sensors
Process Analytics
Process Instrumentation
Sensor Systems
Weighing and Batching Systems
