MAX3109

PRODUCTION

Dual Serial UART with 128-Word FIFOs

Industry's Most Advanced Dual SPI/I²C UART Increases System Flexibility

Data Sheet (Rev. 6)

Part Models: 2
1ku List Price: Starting From $7.50

Viewing:

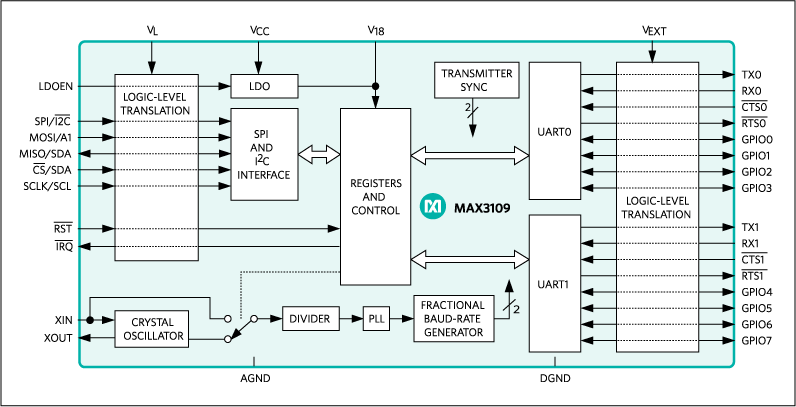

Part Details

Bridges an SPI/MICROWIRE or I²C Microprocessor Bus to an Asynchronous Interface Such as RS-485, RS-232, or IrDA^SM

SIR- and MIR-Compliant IrDA Encoder/Decoder
Line Noise Indication Ensures Data Link Integrity

Deep, 128-Word Buffer and Automated Control Features Help Offload Activity on the Microcontroller
- Automatic Active-Low RTS_ and Active-Low CTS_ Flow Control
- Automatic XON/XOFF Software Flow Control
- 9-Bit Multidrop-Mode Data Filtering
Saves Board Space
- TQFN (5mm x 5mm) Package
- Dual UART in a Single Package
Fast Data Rates Allow Maximum System Flexibility Across Interface Standards
- 24Mbps (max) Data Rate
- High-Resolution Programmable Baud-Rate
- SPI Up to 26MHz Clock Rate
- Fast Mode Plus I²C Up to 1MHz
Integrated PLL and Divider
Power Management Control Features Minimize Power Consumption for Portable Applications
- 1.71V to 3.6V Supply Range
- Shutdown and Autosleep Modes
Logic-Level Translation on the Controller and Transceiver Interfaces Ensure System Compatibility
Register Compatible with MAX3107, MAX3108, and MAX148301

Part Models: 2
1ku List Price: Starting From $7.50
