MAX14783E

PRODUCTION

High-Speed 3.3V/5V RS-485 Transceiver with ±35kV HBM ESD Protection

Industry's Fastest Dual-Voltage RS-485 Transceiver with Highest ESD Protection

Data Sheet (Rev. 3)

Part Models: 12
1ku List Price: Starting From $2.50

Viewing:

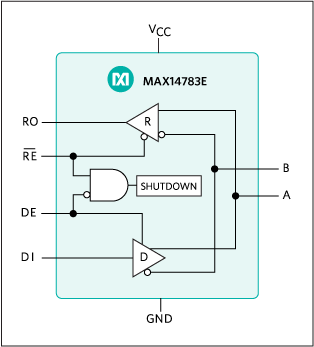

Part Details

Integrated Protection Increases Robustness
- High ESD Protection
  - ±35kV HBM ESD per JEDEC JS-001-2012
  - ±20kV Air Gap IEC 61000-4-2
  - ±12kV Contact ESD per IEC 61000-4-2
- ±4kV EFT per IEC 61000-4-4
- Short-Circuit Protected Outputs
- True Fail-Safe Receiver Prevents False Transition on Receiver Input Short or Open Events
- Hot-Swap Capability Eliminates False Transitions During Power-Up or Hot Insertion
3V to 5.5V Supply Voltage Range
High-Speed Data Rates up to 42Mbps
-40°C to +125°C Operating Temperature
Allows Up to 32 Transceivers on the Bus
Low 10µA (max) Shutdown Current for Lower Power Consumption

Part Models: 12
1ku List Price: Starting From $2.50

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX14783EASA+	Small-Outline IC, Narrow (0.15in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EASA+T	Small-Outline IC, Narrow (0.15in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EATA+	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EATA+T	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EAUA+	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EAUA+T	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EESA+	Small-Outline IC, Narrow (0.15in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EESA+T	Small-Outline IC, Narrow (0.15in)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EEUA+	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EEUA+T	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EGUA+	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14783EGUA+T	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

May 22, 2018 - 1702N ASSEMBLY
		pcn_1702n
MAX14783EASA+	PRODUCTION
MAX14783EASA+T	PRODUCTION
Oct 30, 2020 - 1702R2 ASSEMBLY
		pcn_1702r2
MAX14783EESA+	PRODUCTION
MAX14783EESA+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

IBIS Model 1

MAX14783E IBIS Model

Reference Designs

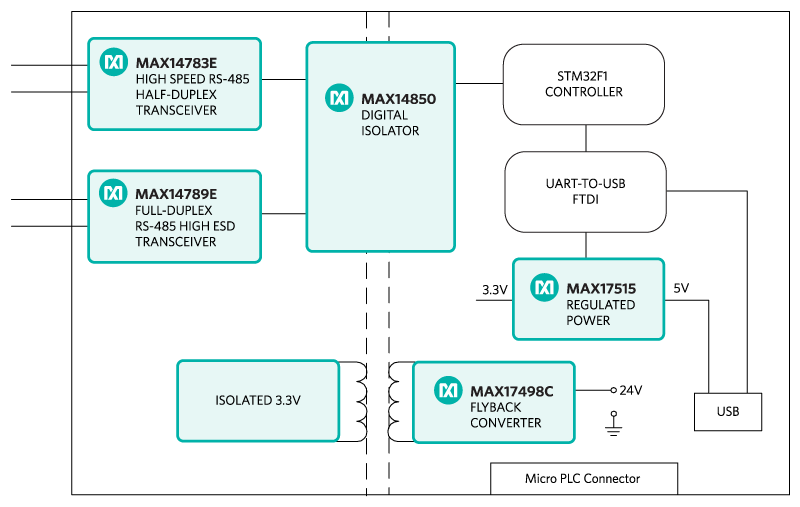

RS-485 Communications Micro PLC Card

View Detailed Reference Design

Features and Benefits

High-speed RS-485 communication
Isolated power and data
Micro PLC form factor
Extended Protection with TVS on RS-485 Lines
Device drivers
Example C source code
Test data

Part Used

MAX14783E

MAX14789E

MAX14850

Design & Integration Tools

Download Design Files
3.42 M

Pocket IO PLC Development Platform

View Detailed Reference Design

Features and Benefits

Two analog input channels ±12V, differential, 0V to +12V range per pin, 24-bit ADC
Two analog input channels ±24mA, 24-bit ADC
Analog output channel 0V to ±12V, 16-bit DAC
Eight digital input channels 36V (max) configurable for IEC^® 61131-2 input types 1, 2, and 3
Eight digital output channels; 640mA high-side switches or 640mA push-pull at 24V
Two RS-485 COM ports; half-duplex up to 42Mbps data rate
Three DC-motor controllers: 9V to 32V full-bridge DC-motor drivers, up to 2.5A peak motor current (supplied by separate power supply)
Four IO-Link master ports with M12 female connectors
Fully IO-Link version 1.1 compliant
TEConcept IO-Link master stack
